Panel/combination instrument--panel
32. Disassemble lower panel assembly [68010005]
(a) Disassemble the joint of indoor temperature sensor.
(b) Disassemble machine cover locking pull cable with handle assembly.
(c) Disassemble six D bolts.
(d) Disassemble six fixing clamps and panel lower board.
33. Disassemble left storage box of lower panel [68010007]

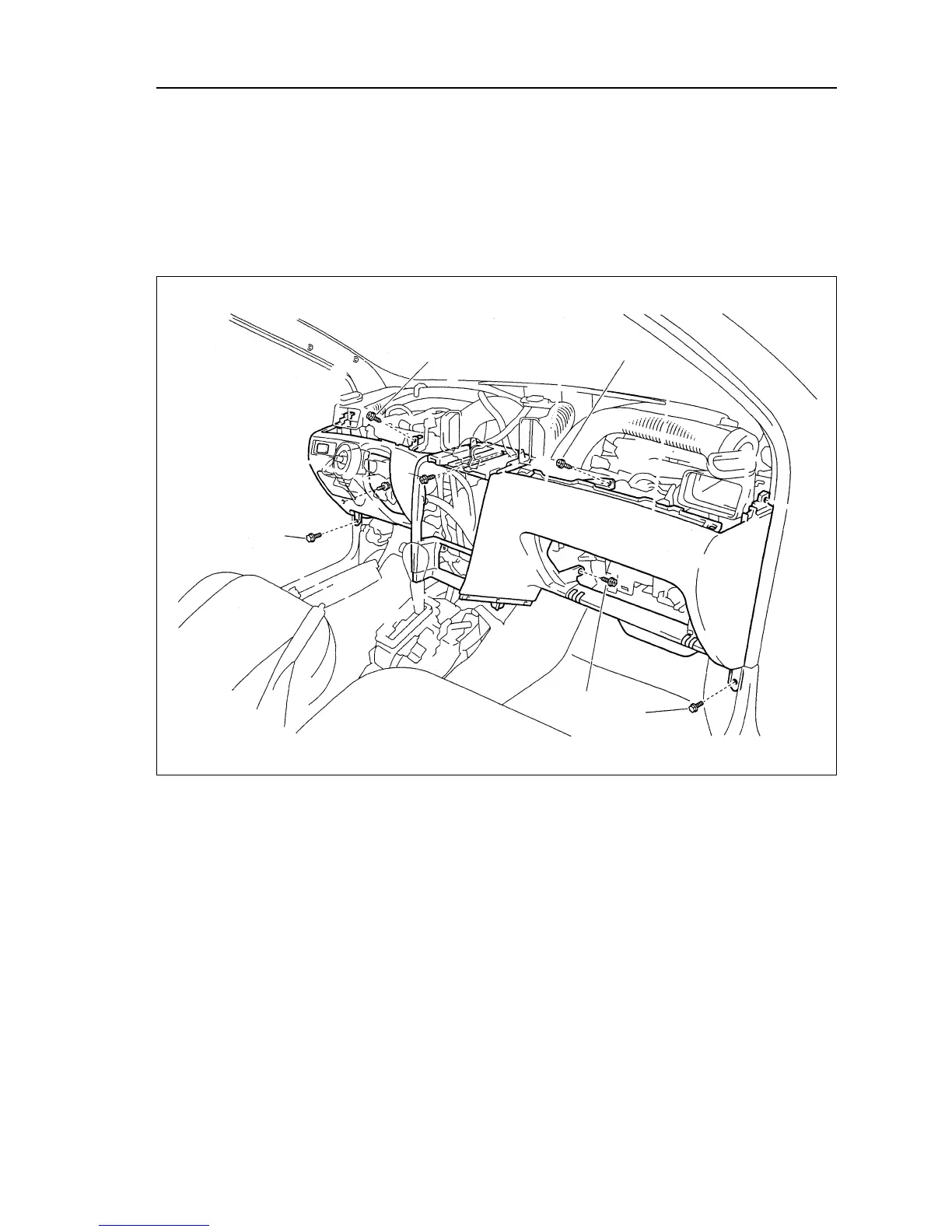

34. Assemble upper panel assembly [68010004]
Assemble upper panel assembly with D bolt and two A screws.
D bolt: 18 N⋅m
35. Assemble CD machine assembly [67000126]
(a) Assemble pedal central ventilation hole assembly on CD machine assembly.
<D>
<D>
<D>
<D>
<D>
<D>
345
