Engine mechanism - Valve clearance

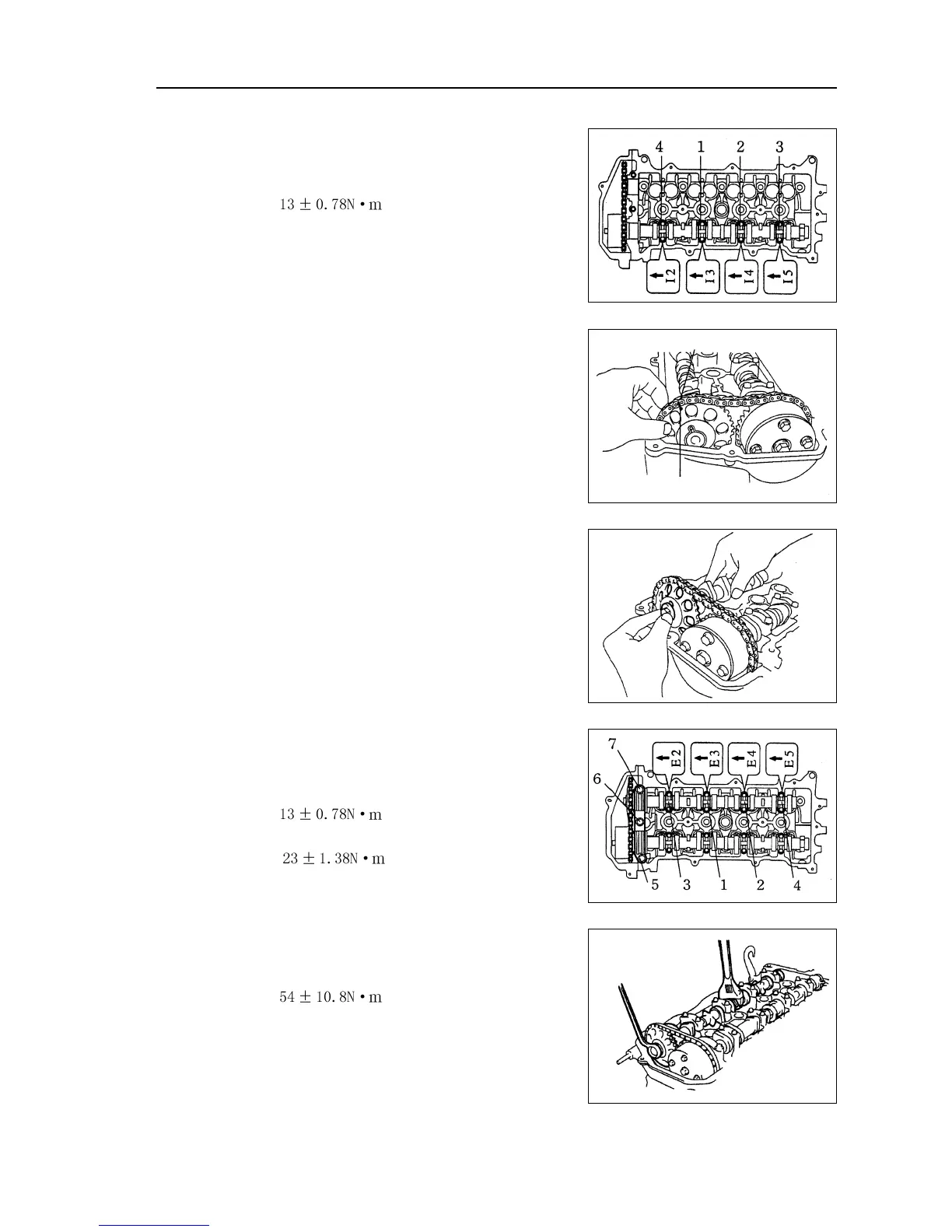

(n) Check intake side camshaft bearing cover forward re-
mark and figure, and tighten the bolts as sequences
shown in the diagram.
Torque:
(o) Align alignment mark on the chain with timing mark on
camshaft timing sprocket, and place exhaust camshaft
in cylinder head.
(p) Temporarily lock fixed bolts.
(q)Check exhaust side camshaft bearing cover forward
remark and figure, and tighten the bolts as sequences
shown in the diagram.
Torque:
(r) Install camshaft front bearing cover.
Torque:
(s) Fix camshaft with adjustable wrench and then tighten
the fixed bolts of camshaft timing sprocket.
Torque:
Note: be careful not to damage valve lifter.
33
Timing remark chain link
Timing mark
Tightening
Fixing
To Next Page
