Engine mechanism - Valve clearance

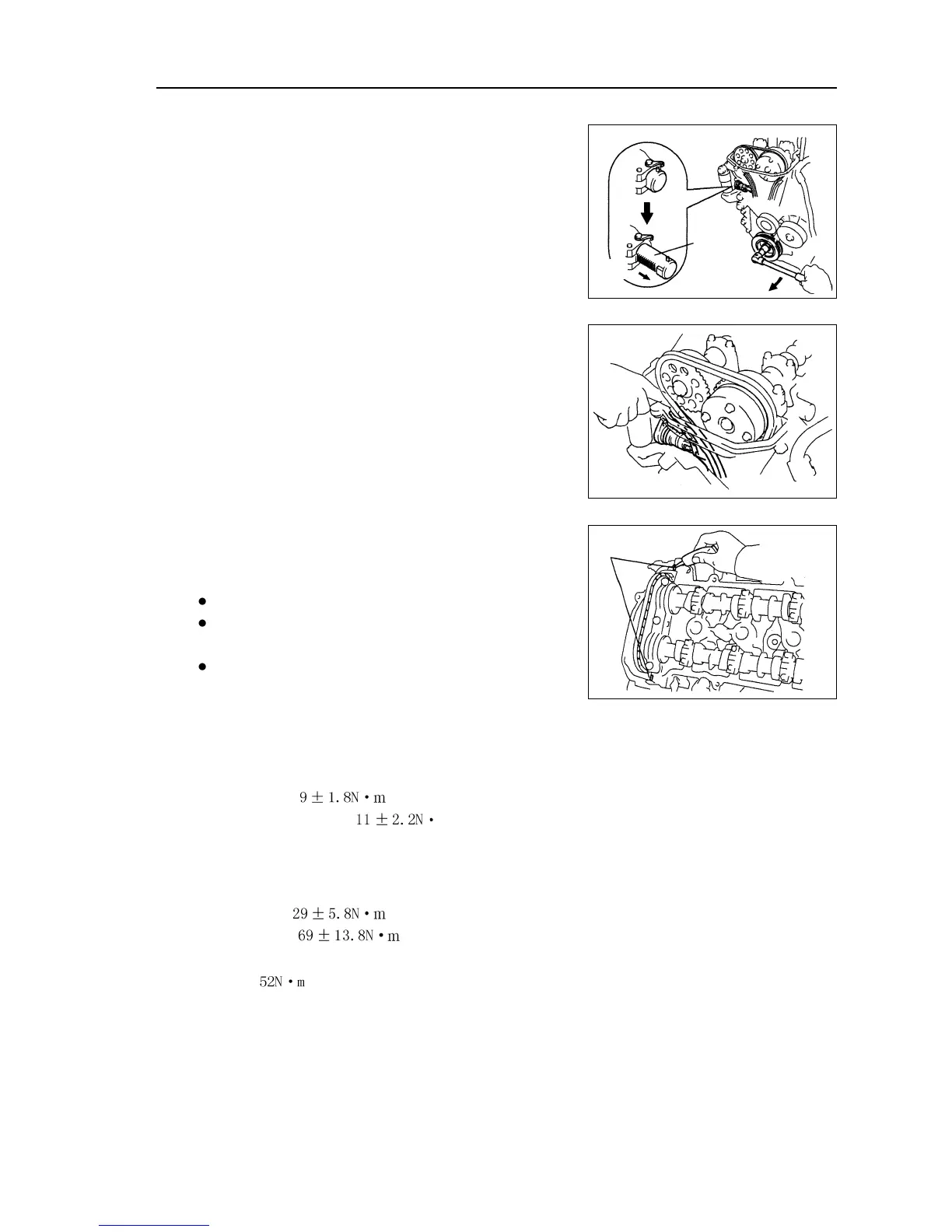

(4) Turn crankshaft clockwise, and check the sliding
parts are blocked by plunger.
Hint: if the plunger does not eject, press the chain ten-
sion rail toward chain tensioner with screwdriver
or fingers to separate the hook from lock pin and
make the plunger eject.
11.Install cylinder head cover components.
(a) Install cylinder head cover gasket on cylinder head cover.
(b) Eliminate all old sealant (FIPG) materials.
(c) Coat sealant on 2 positions shown in the diagram.
Notes:
Wipe off all the oil stains on junction plane.
After coating sealant, finish installation of cylinder head
cover within 3 minutes.
After installing, do not refill engine oil within 2 minutes.
(d) Install cylinder head cover components with 9 bolts, 2 seal washers and 2 nuts.
Evenly tighten bolts and nuts at several times.
Torque:
Short bolt:
Nut, long bolt etc.: m
12. Install drive belt tensioner device.
Torque: nut:
Bolt:
13. Install fixing bracket absorber on the left of engine.
Torque:
14. Check there is oil leakage.
Sealant
35
Plunger
Turning
Pushing
