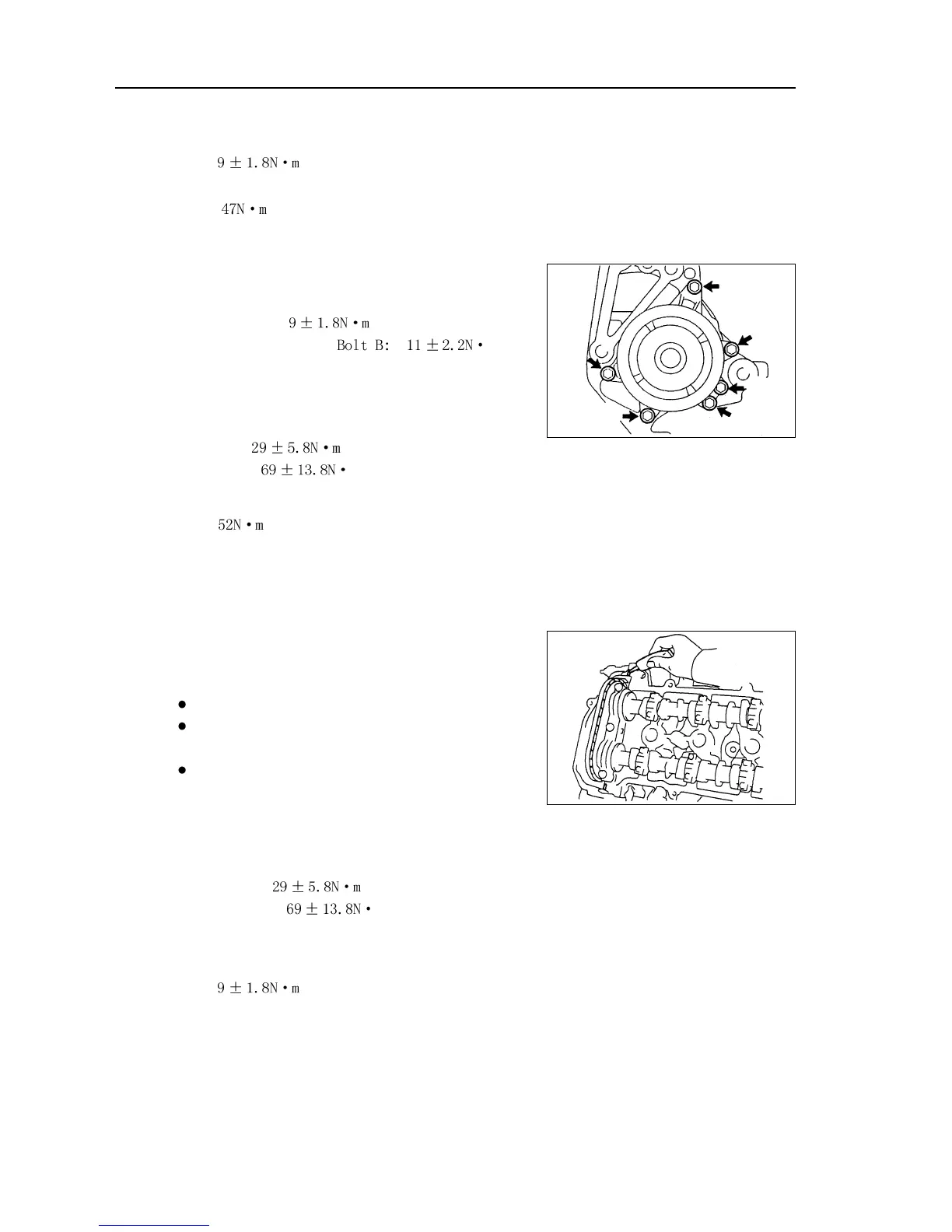

Engine mechanism - Timing chain assembly
34. Install speed sensor.
Torque:
35. Install engine fixing bracket
Torque:
36. Install water pump mounting components
[4G18-1307100].
(a) Install new o-ring on water pump.
(b) Install water pump with 6 bolts.
Torque: bolt A:
m
37. Install drive belt tensioner device.
Torque: nut:
Bolt: m
38. Install right engine mounting assembly.
Torque:
39. Install cylinder head cover components.
(a) Install gasket to cylinder head cover.
(b) Eliminate all old seal materials.
(c) Coat sealant on 2 positions shown in the diagram.
Sealant: silicon rubber flange sealant 1596
(Kesaixin 1596).
Notes:
Eliminate all grease on contact surface.
After coating sealant, finish installation of cylinder
head cover within 3 minutes.
After installing, do not refill engine oil within 2
minutes.
(d) Install cylinder head cover and cable bracket with 9 bolts,
2 seal washers and 2 nuts.
Torque: nut:
Bolt: m
40. Install ignition coil mounting components.
Torque:
50
