Engine mechanism - Camshaft
9. Remove camshaft.
Note: do not turn crankshaft before installing timing chain
tensioner.

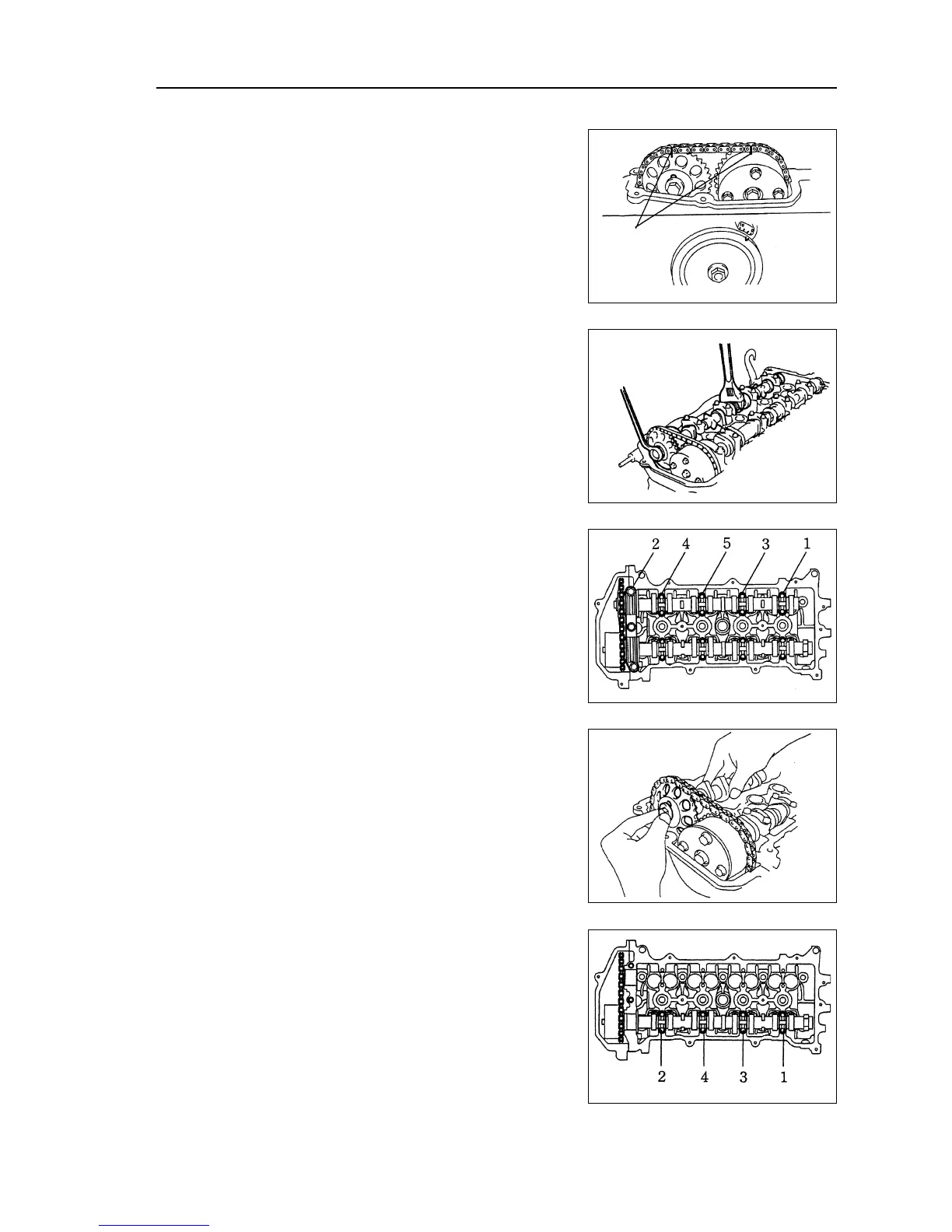

(a) Turn crankshaft to cylinder 1 top dead center position.
(b) Make marks on timing chain and camshaft timing sprocket.
(c) Remove 2 bolts and chain tensioner.
(d) Fix camshaft with variable wrench and then loosen the fixed
bolts of camshaft timing sprocket.
Note: do not damage valve lifter.
(e) As sequences shown in the diagram, loosen camshaft bear-
ing cover bolts on exhaust camshaft at several times and
remove the bearing cover at the same time.
(f) As shown in the diagram, remove exhaust camshaft tim-
ing sprocket.
(g) As sequences shown in the diagram, loosen camshaft bear-
ing cover bolts on intake camshaft at several times and
remove the bearing cover at the same time.
Painting
mark
Fixing
Loosening
53
