Engine mechanism - Camshaft
14. Adjust valve clearance.
15. Install cylinder head cover components.
(a) Install gasket to cylinder head cover.
(b) Eliminate all old sealant (FIPG) materials.

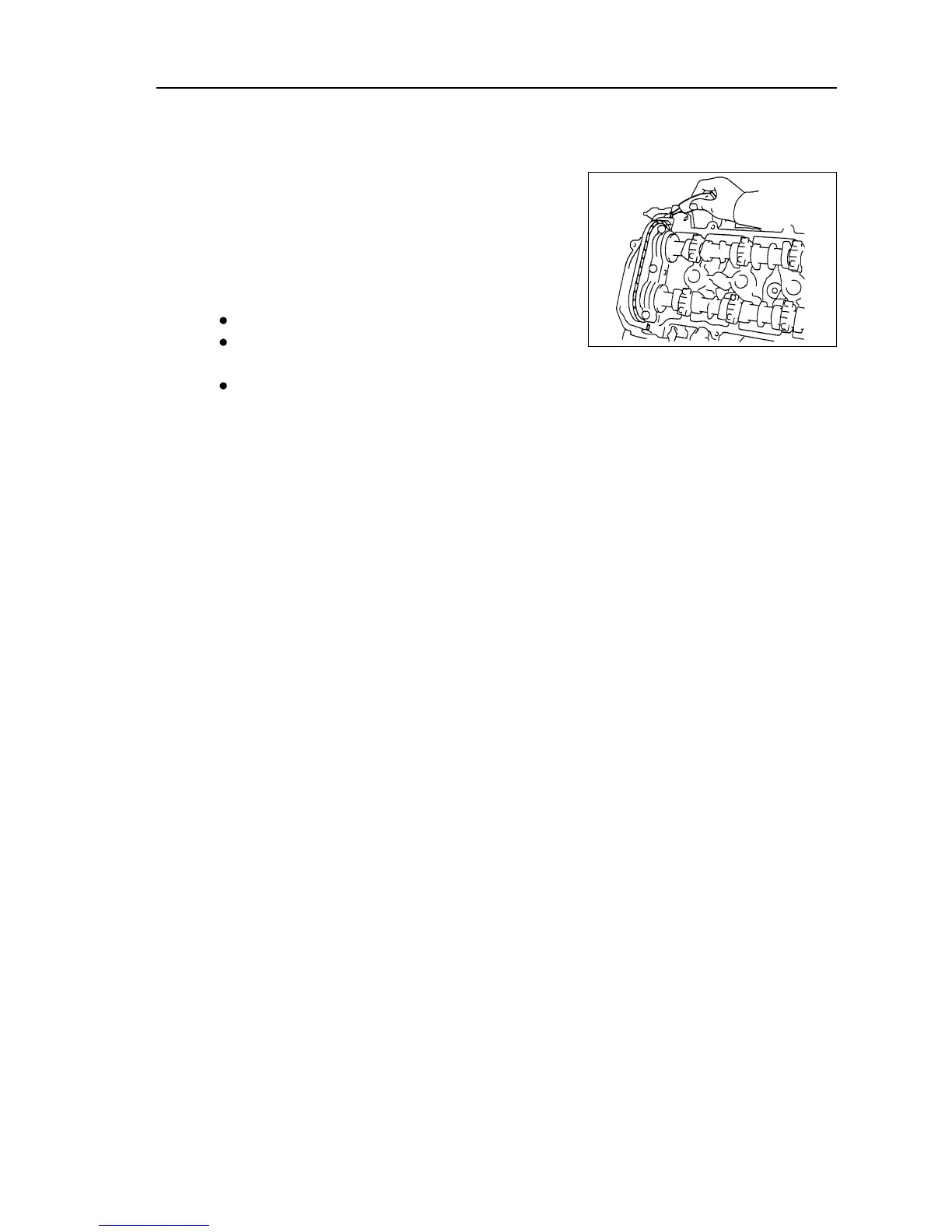

(c) Coat sealant on position shown in the diagram.
Sealant: silicon rubber flange sealant 1596 (Kesaixin
1596).
Notes:
Eliminate all oil on contact surface.
After coating sealant, finish installation of cylinder
head cover within 3 minutes.
After installing, do not refill engine oil within 2
minutes.
(d) Install cylinder head cover and harness bracket with 9
bolts, 2 oil seal washers and 2 nuts.
Evenly tighten bolts and nuts at several times.
Torque: nut: 29 ±5.8N.m
Bolt: 69 ±13.8N.m
16. Install drive belt tensioner device.
Torque: nut: 29 ±5.8N.m
Bolt: 69 ±13.8N.m
17. Install right engine mounting assembly.
Torque: 52N.m
18. Check there is oil leakage.
59
