Gemsy GEM1900A - Revolution Movement)

SC201(1900A/1903A) Operation Instruction
11
Update the time of pause by pressing down the key, and the setting moves to the
automatic origin retrieval setting.
2) Origin retrieval setting
Press the 、 key to set.
A0：Ineffective ；
A1：Every time .
Press the key to finish setting and move to Pattern No. setting.
3) Continuous Operation
In the Ordinary Sewing Mode, you can change the Pattern No., X./Y scale Enlarge/Reduce
setting, the Max speed and so on. The continuous operation can be stopped at the time of
pause by depressing the key.

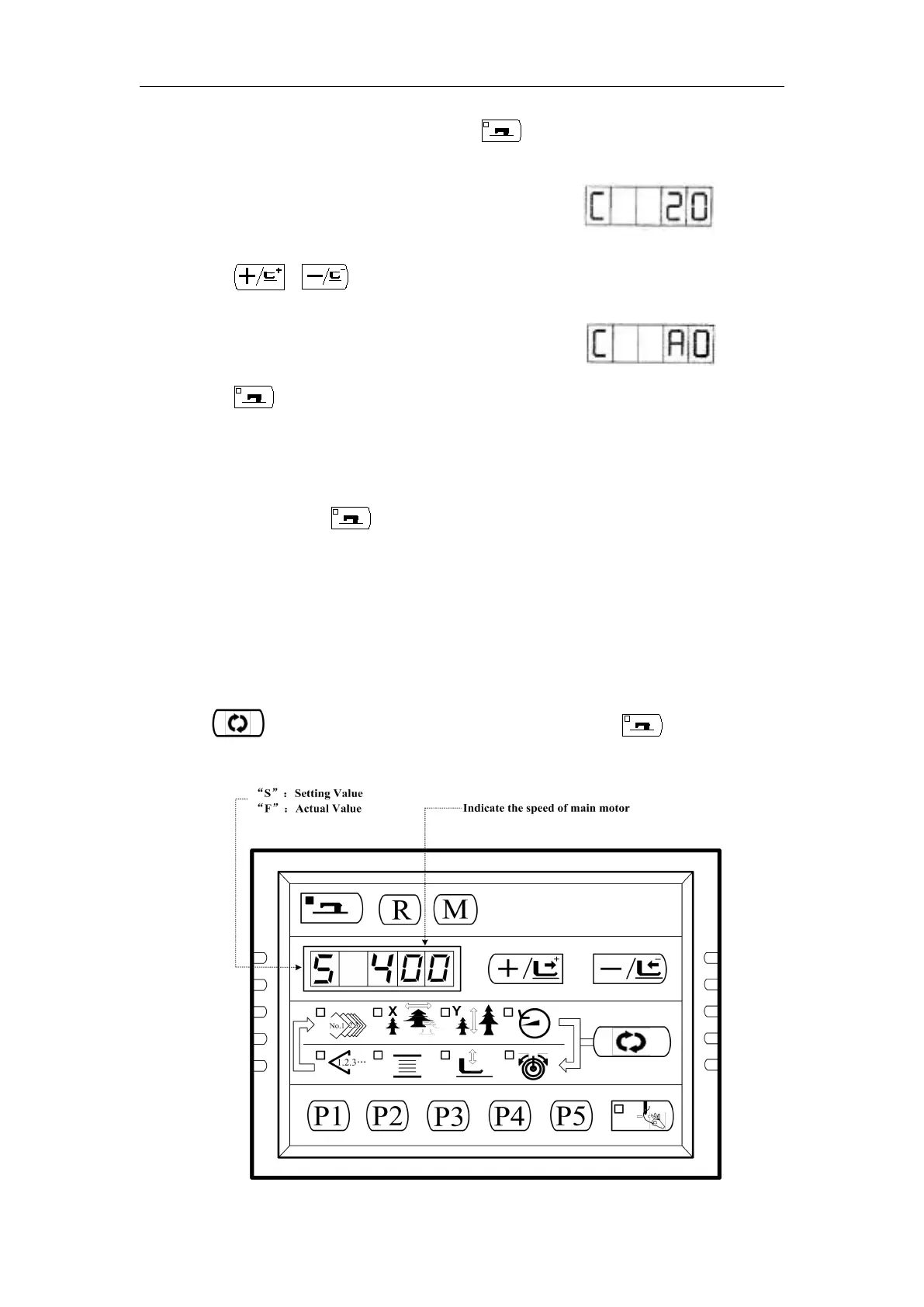

2.3.4 CP-4 (Revolution Movement)
Output of the specified number of revolution is made and the actual number of revolutions
is indicated.
1) Prepare
Press key to enter CP-4, and “S400” is displayed. Press the key for origin
retrieval and the Sewing LED lights up.
