Ⅱ.LK-1901A高速电子锁眼加固缝纫机的说明 Explanation of LK-1901A. computer-controlled high-speed
bartacking machjne
使用说明书 Operation Instruction
1.规格 Specifications
l)转速
2)使用机针
3)压脚提升方式
4)压脚上升量
5)记忆数据数量
6)拨线方式
Different specifications from those of the LK-1900A only are described.
最高3.00 0rpm
DP×5 #14,# 16
脉冲马达
最大17mm
3种
脉冲马达压脚提升连动
这里起记述与LK-1900A不同部位的说明内容。
.... ..... ..... ..... ..... ..... ..... .....
.... ..... ..... ..... ..... ..... ..... .
.... ..... ..... ..... ..... ..... ..
.... ..... ..... ..... ..... ..... ....
.... ..... ..... ..... ..... ..... ..
.... ..... ..... ..... ..... ..... ..... .
1) Sewing speed
2) Needle
3) Lifting method of the work clamp foot.
4) Lift of the work clamp foot
5) Number of standard patterns
6) Wiper method
Max. 3,000rpm
DPx5 #14, #16
Stepping motor
Max, 17mm
3 patterns
Interlocked with work clamp foot lifter driven by stepping motor
......................................................................
.................................................................................
.................................
...................................................
...............................................
......................................................................
2.安装和运转 准备 Installation of the sewing machine and preparation of the operation
①
②
1) Except for the connection of the work clamp foot bracket
unit solenoid, installation of LK-190IA and preparation of the
operation are the same as those of the LK-1900A. Refter to
the instruction manual for the LK-1900A.

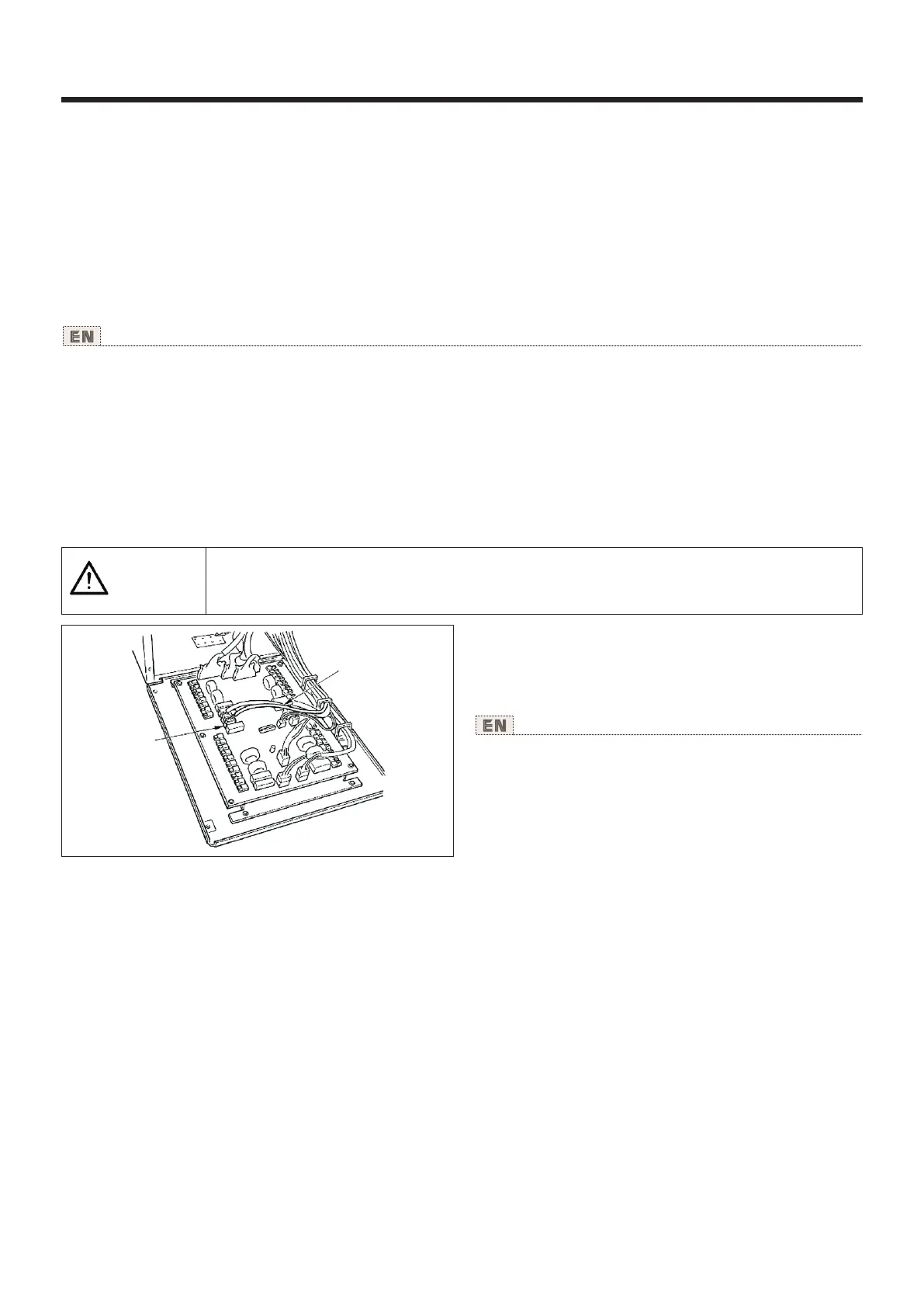

2) Connect connector J47 ① of the relay cable of the work
clamp foot bracket unit with connector J47 ② mounted on the
MAIN circuit board inside the control box.
1)除抓起装置以外均与LK-1900 A相同。有关 内容
请参照LK-19 00A使用说 明书。
2)抓起装置电 磁续电器连 接电缆的接 头J47①连
接到电气箱内 的主电路板 的接头J47② 上。
为了防止缝纫机的意外起动,请关掉电源之后进行操作
注意
CAUTION
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
