SC201(1900A/1903A) Appendix2
55
7 Appendix 2

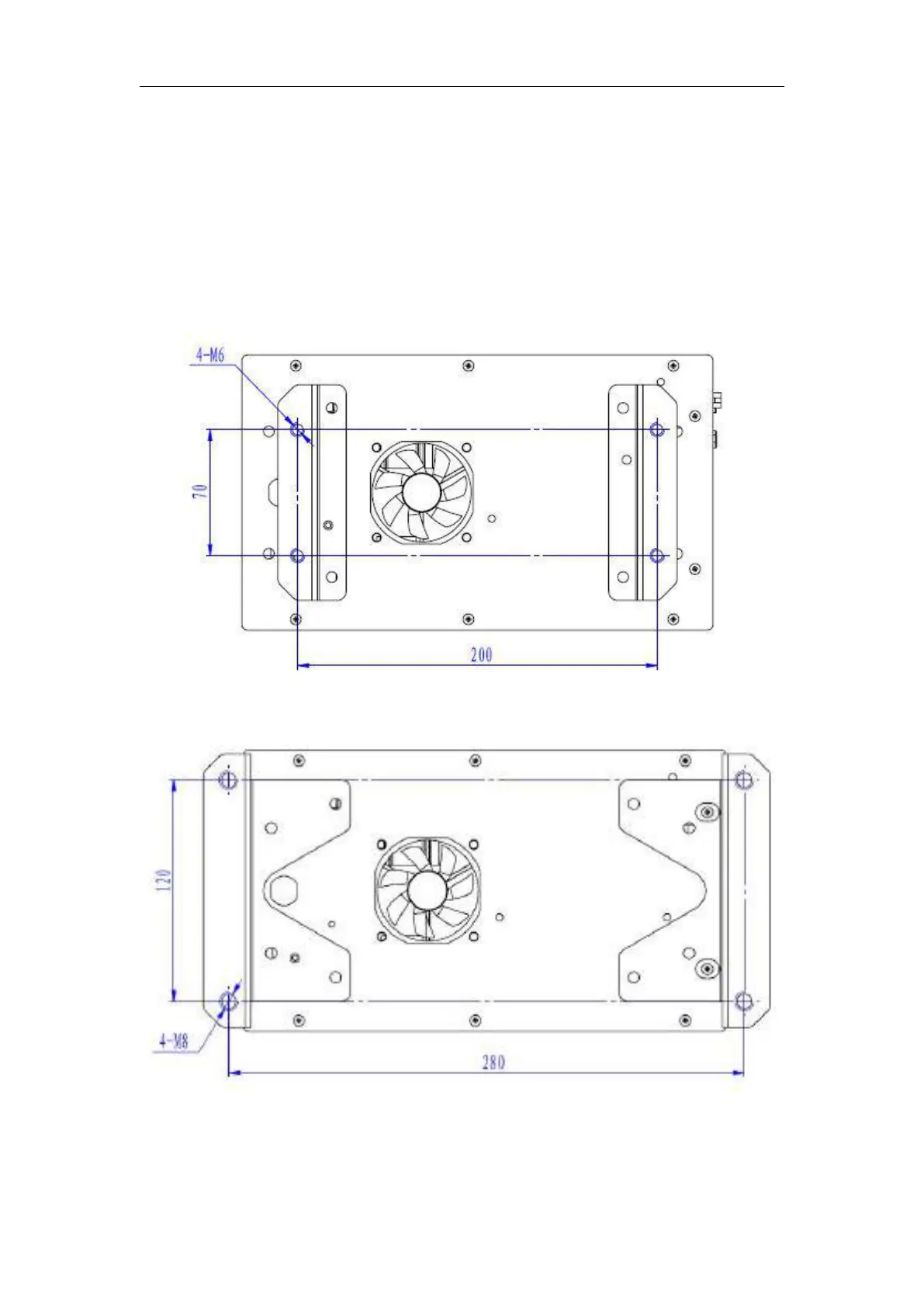

7.1 Installation Size of Control Box
At present, there are three kinds of installation methods for the computerized controllers of
our company, which are 4-hole installation and 3-hole installation. For the detailed size,
please refer to the picture as below:
Figure 1 Size of 4-hole Installation
Figure 2 Size of 4-hole Installation
