Gemsy GEM1900A - Diagram of Connection of the External Cable and Control Box

SC201(1900A/1903A) Appendix2
57

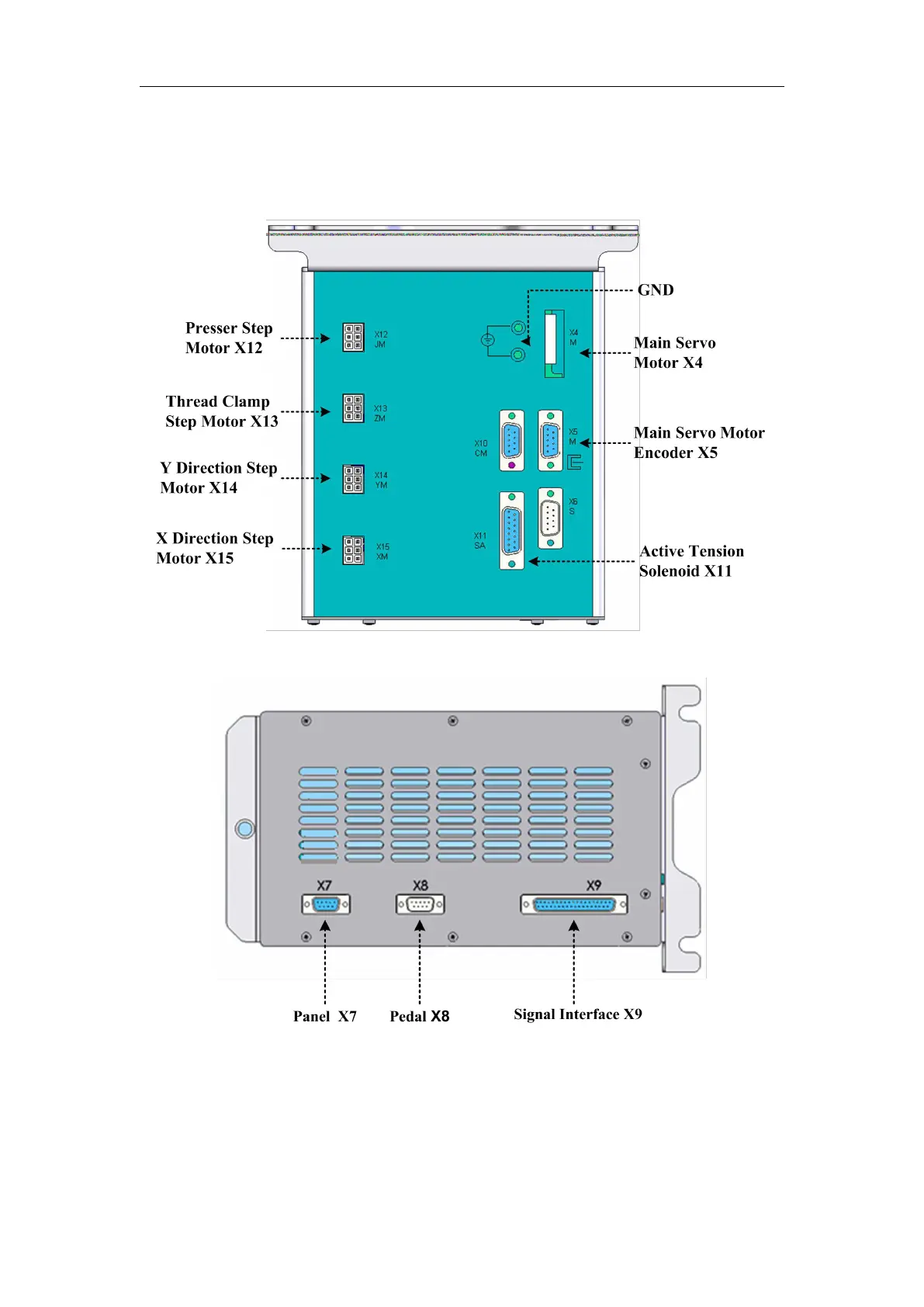

7.3 Diagram of Connection of the External Cable and Control Box
Please check the corresponding symbol on both the external cable and control box. Follow the
symbol to make the connection.
Figure 5
Figure 6
