使用说明书 Operation Instruction
4
缝纫机台上附属的圆头螺栓①平垫片②弹簧垫片③螺
母④按照图式的位置安装好,再把头上有六角凹坑的
螺栓⑤弹簧垫⑥平垫片⑦按照图式的位置安装好。

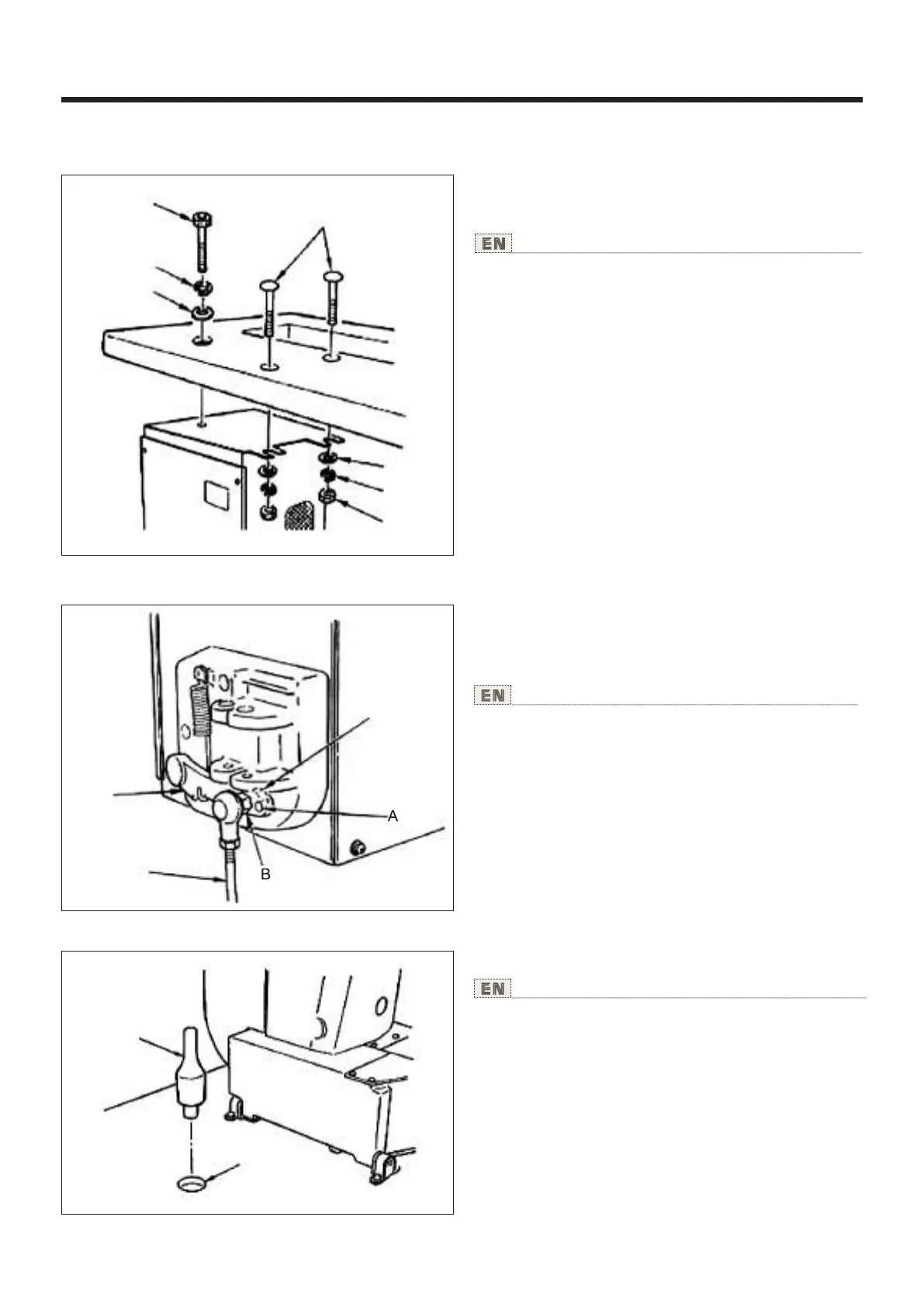

1.电气箱的安装 Installing the electrical box
Install the electrical box on the underside of the table at the
location illustrated using round-head bolt ①, plain washer .
spring washer ③ and nut ④ supplied with the machine, and
using bolt having hexagonal indentation on the head⑤. spring
washer ⑥ and plain washer ⑦ supplied with the machine.
②
①
②
1) 连接杆①用螺母③固定到踏板拨杆②的安装孔B
轑。
2) 把连接杆①安装到安装孔A之後,踏板的踩踏形成
变大。
2.连接杆的安 装方法 Attaching the connecting rod
1) Fix connecting rod to installing hole B of pedal lever
with nut .
2) when connecting rod is installed in installing hole A, the
depressing stroke of the pedal is increased.
① ②
③
①
③
④
⑤
⑥
⑦
①
②
③
把机头部支杆①钉到机台孔②里。
3.机头部支杆 的安装 Installing the head support rod
Drive head support rod ① in hole ② in the machine table.
①
②
[3].安装 INSTALLATION
