P a g e | 121

UCM6200 Series User Manual

7. For each of the 5 phones used by English speaking customer support, in “Basic” settings select an available

extension for account 1 and click on “Save”. Then click on “Advanced” settings tab to bring up the following

dialog. Users will see the English support template is applied since this is the default model template. A

preview of the device settings will be listed on the right side.

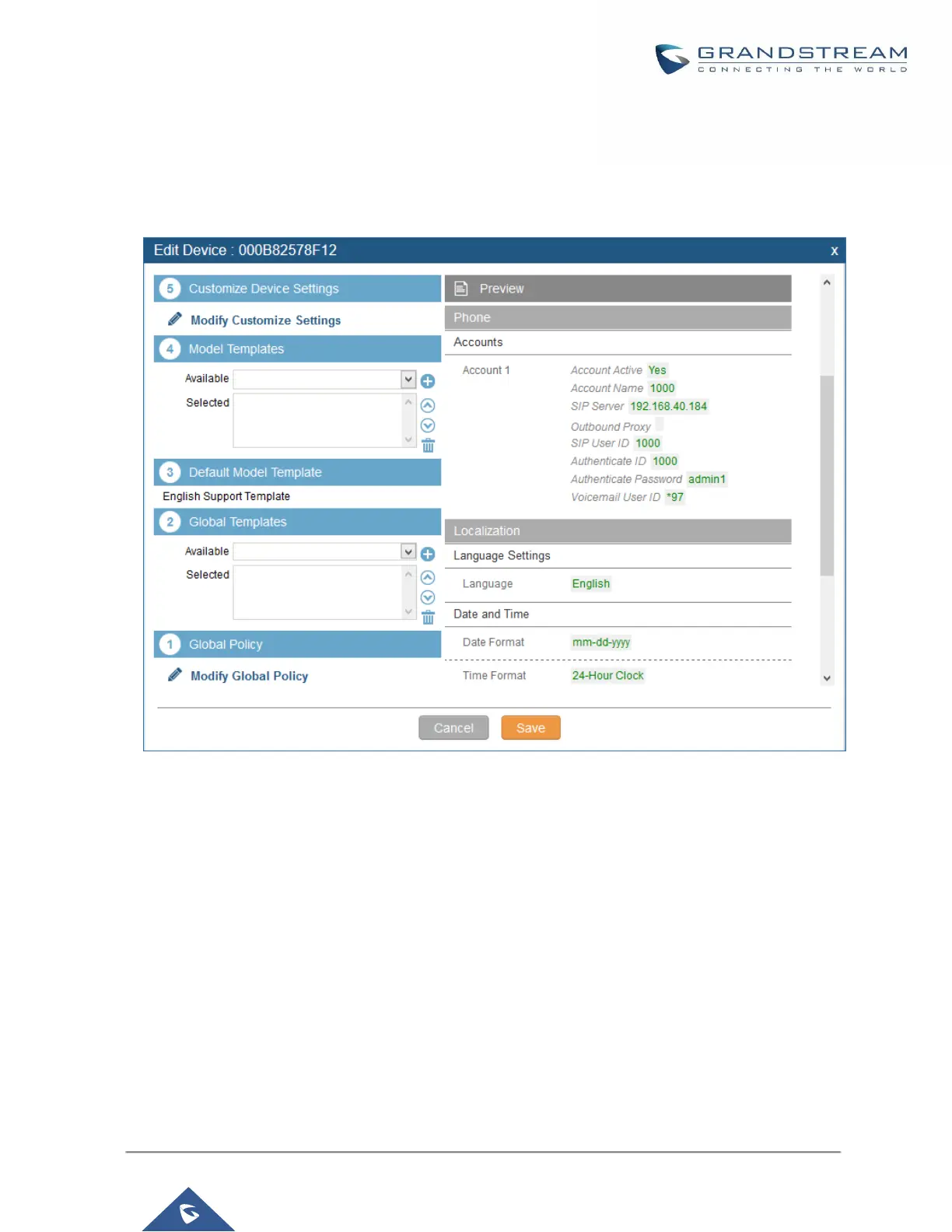

Figure 91: Zero Config Sample - Device Preview 1

8. For the 3 phones used by Spanish support, in “Basic” settings select an available extension for account 1

and click on “Save”. Then click on “Advanced” settings tab to bring up the following dialog.
