P a g e | 157

UCM6200 Series User Manual

SMS message support

The UCM6200 provides built-in SIP SMS message support. For SIP end devices such as Grandstream GXP or GXV

phones that supports SIP message, after an UCM6200 account is registered on the end device, the user can send and

receive SMS message. Please refer to the end device documentation on how to send and receive SMS message.

SMS Message support is a new feature added since firmware 1.0.10.x.

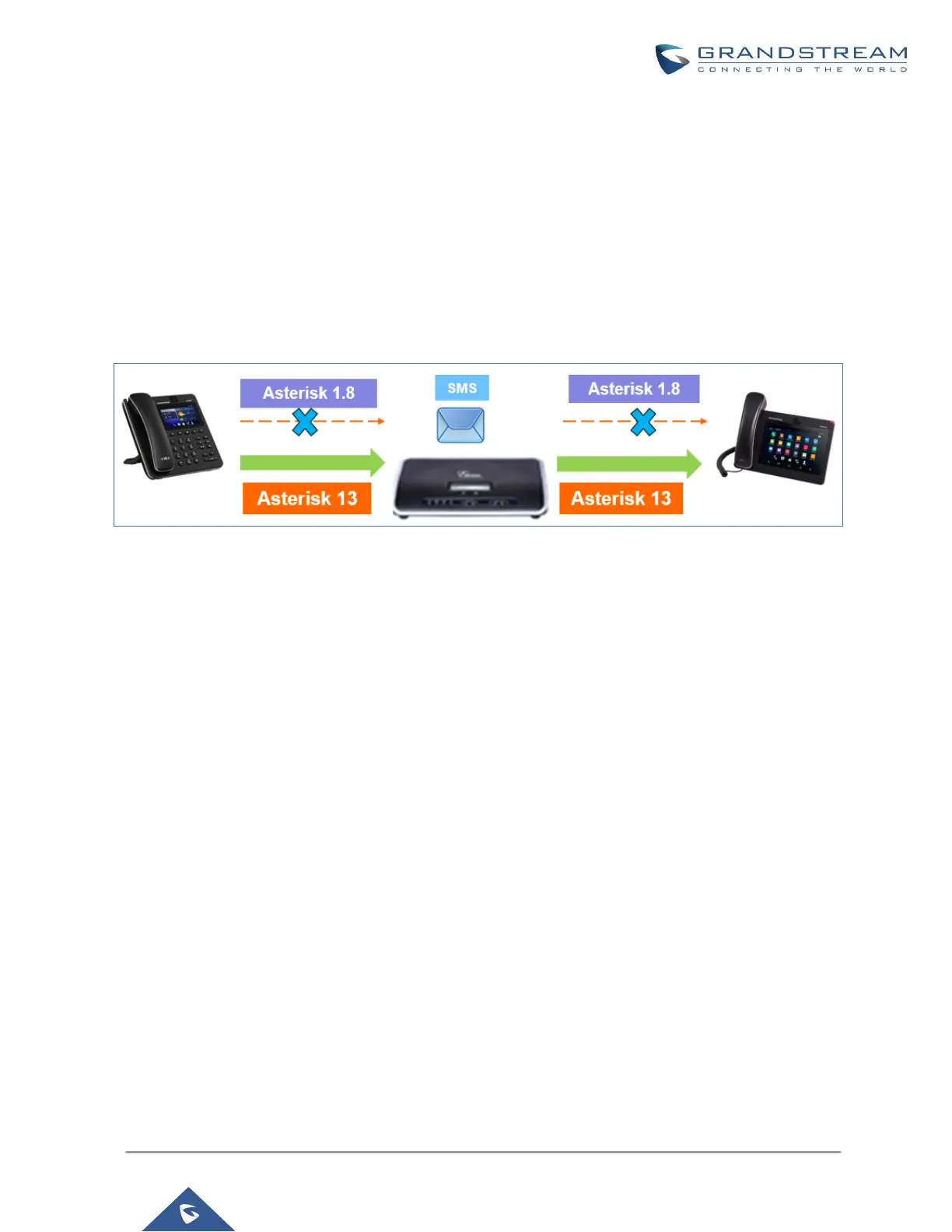

Figure 106: SMS Message Support
