P a g e | 234
UCM6200 Series User Manual
Now the Fax configuration is done. When there is an incoming Fax calling to the PSTN number for the FXO port,
it will send the Fax to the Fax machine.
Sample Configuration for Fax-To-Email
The following instructions describe a sample configuration on how to use Fax-to-Email feature on the UCM6200.
1. Connect PSTN line to the UCM6200 FXO port.
2. Go to UCM6200 web GUI->Internal Options->Fax/T.38 page. Create a new Fax extension.

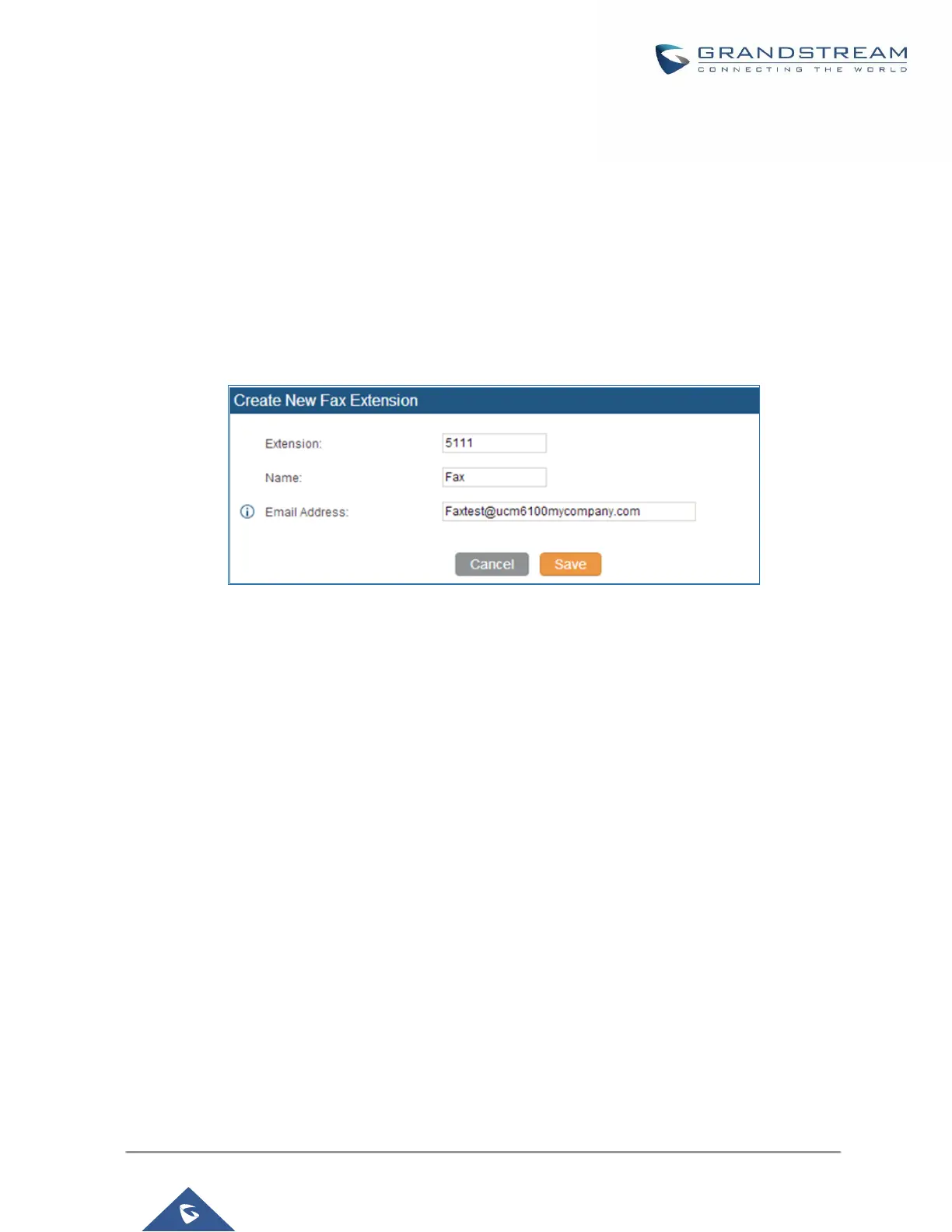

Figure 156: Create Fax Extension
3. Go to UCM6200 web GUI->Basic/Call Routes->Analog Trunks page. Create a new analog trunk. Please
make sure "Fax Detection" is set to "No".
4. Go to UCM6200 web GUI->Basic/Call Routes->Inbound Routes page. Create a new inbound route and
set the default destination to the Fax extension.
