P a g e | 206

UCM6200 Series User Manual

Customize Specific Prompt

On the UCM6200, if the user needs to replace some specific customized prompt, the user can upload a single specific

customized prompt from web UI->PBX->Internal Options->Language instead of the entire language pack.

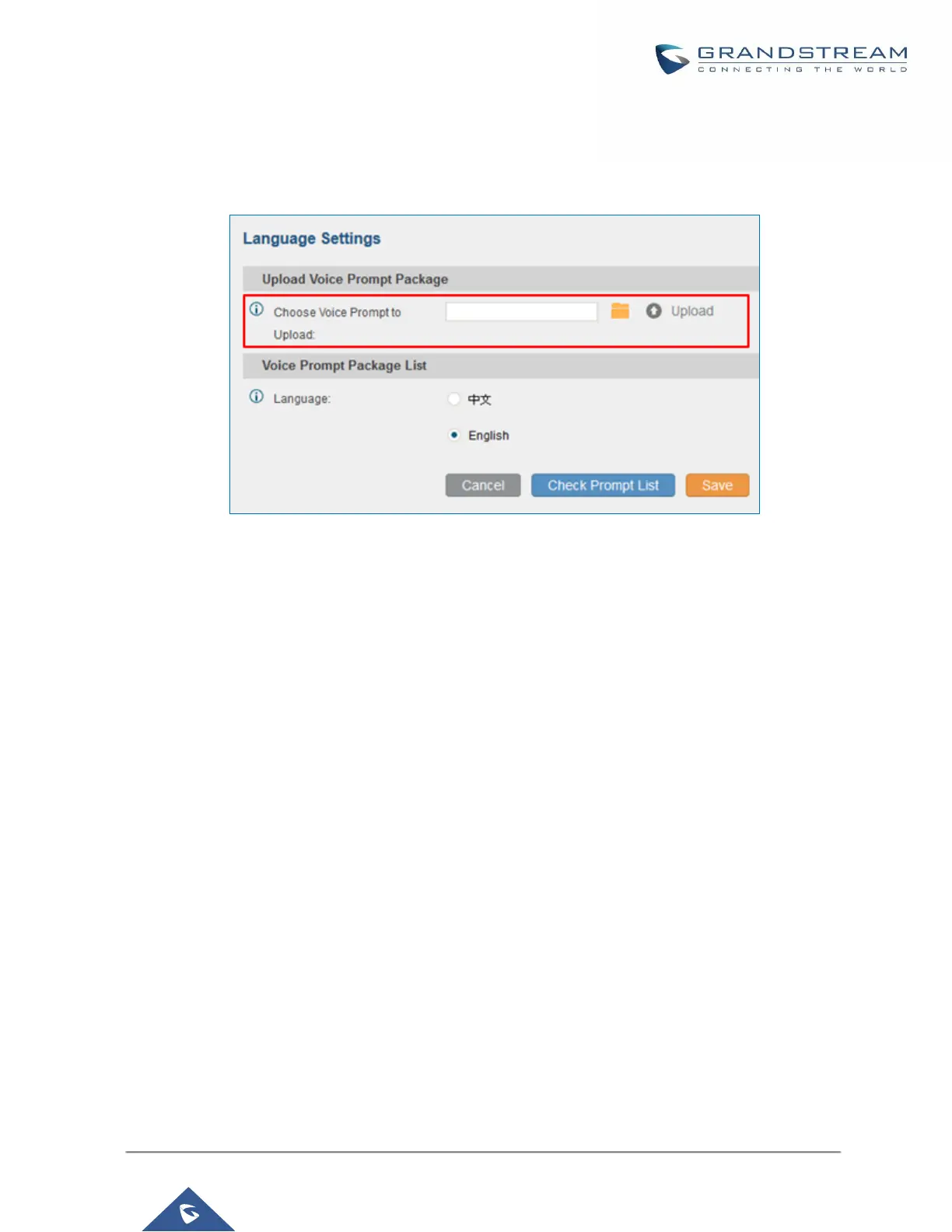

Figure 132: Upload Single Voice Prompt for Entire Language Pack
