P a g e | 305

UCM6200 Series User Manual

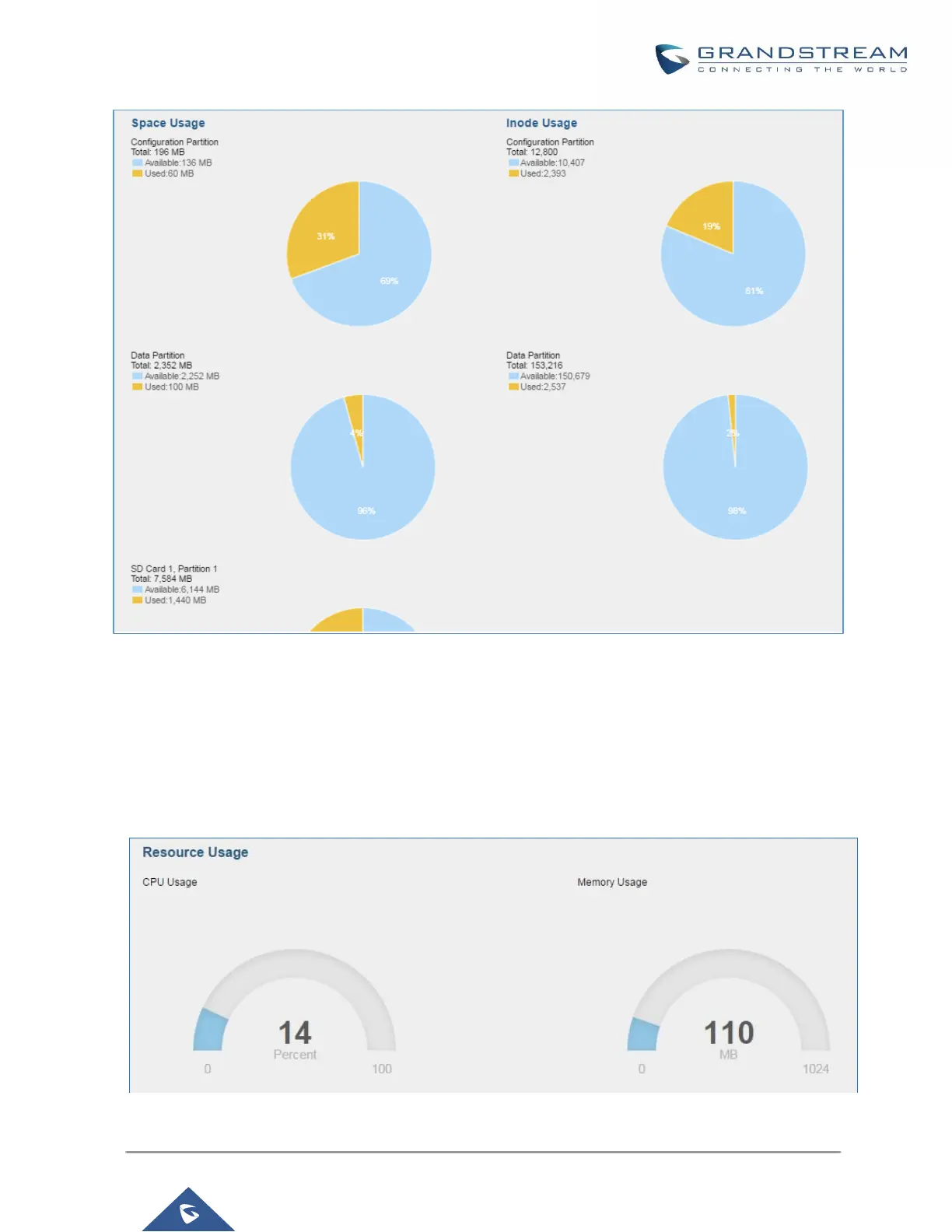

Figure 209: System Status->Storage Usage

Resource Usage

When configuring and managing the UCM6200, users could access resource usage information to estimate the

current usage and allocate the resources accordingly. Under web UI->Status->System Status->Resource

Usage, the current CPU usage and Memory usage are shown in the pie chart.

Figure 210: System Status->Resource Usage
