P a g e | 62

UCM6200 Series User Manual

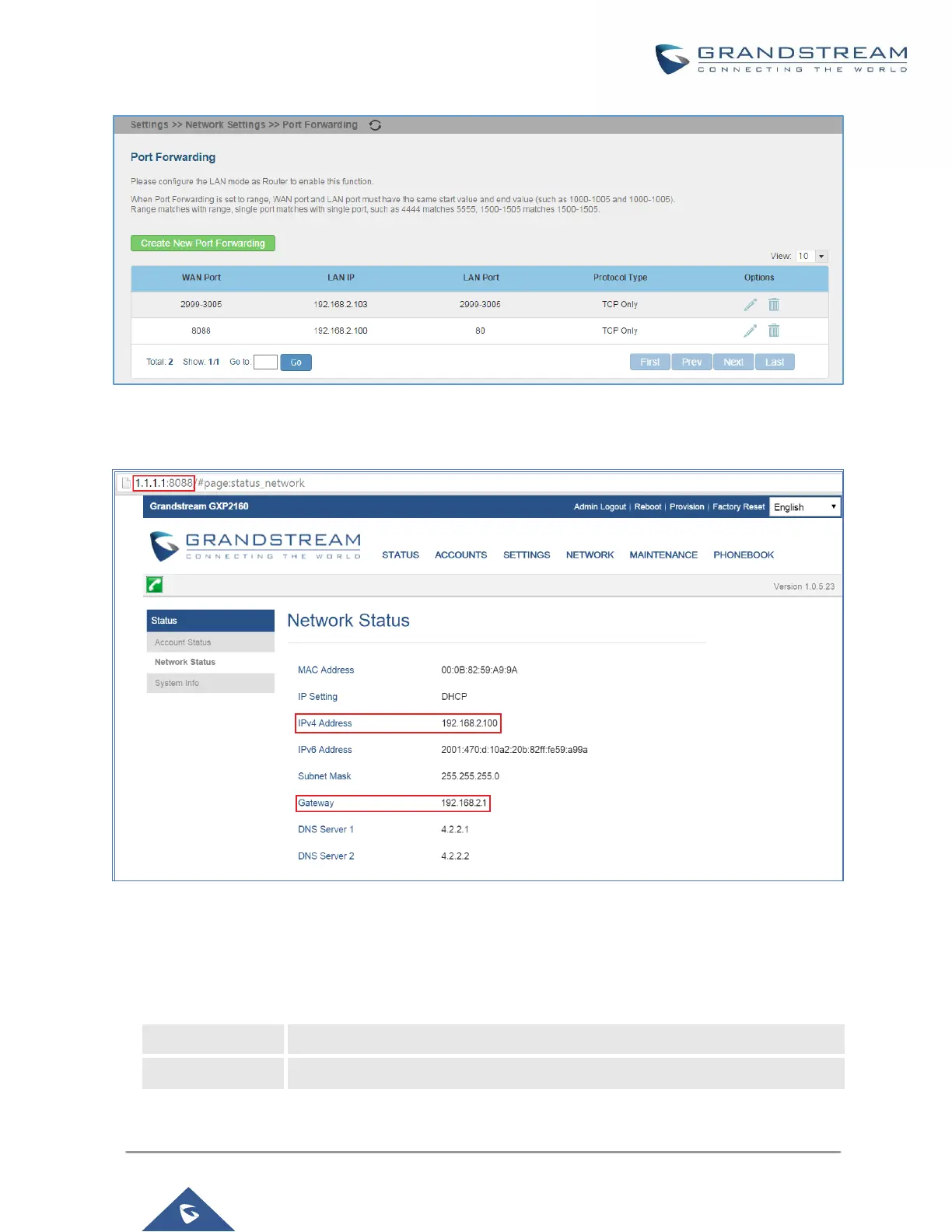

Figure 34: UCM6200 Port Forwarding Configuration

This will allow users to access the GXP2160 web UI from public side, by typing in address “1.1.1.1:8088”.

Figure 35: GXP2160 Web Access Using UCM6202 Port Forwarding

OpenVPN

Open VPN settings allow the users to configure UCM6200 to use VPN features

Table 13: UCM6200 Settings -> Network Settings -> Open VPN

Enable

Enable / Disable the open VPN feature.

Server Address

Configures the hostname/Ip and port of the server. For example : 192.168.1.2:22
