P a g e | 272

UCM6200 Series User Manual

Please note, if pin group is enabled on outbound route level, password, privilege level and enable filter on source

caller ID will be disabled.

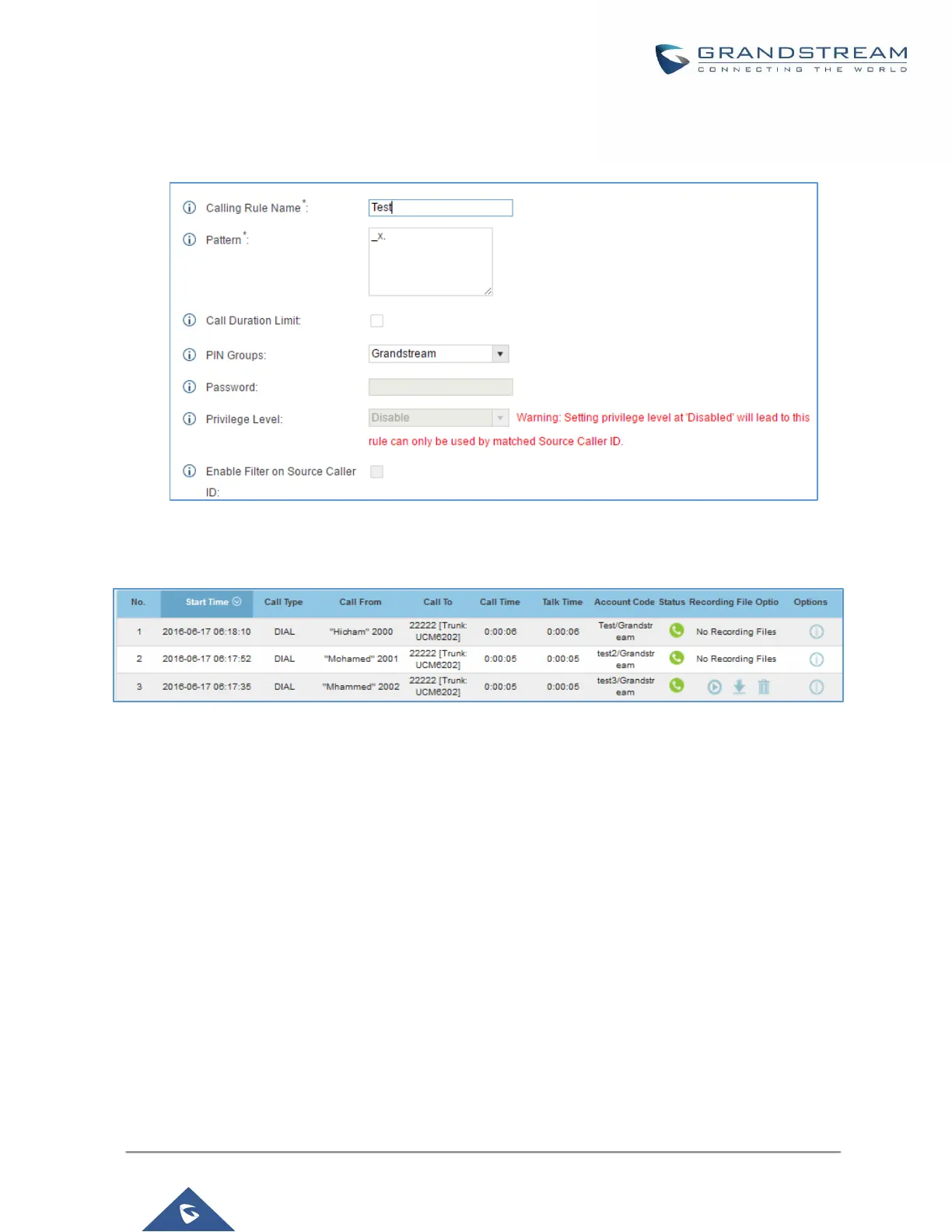

Figure 180: Outbound PIN

If pin group CDR is enabled, the call with pin group information will be displayed as part of CDR under Account

Code field.

Figure 181: CDR Record
