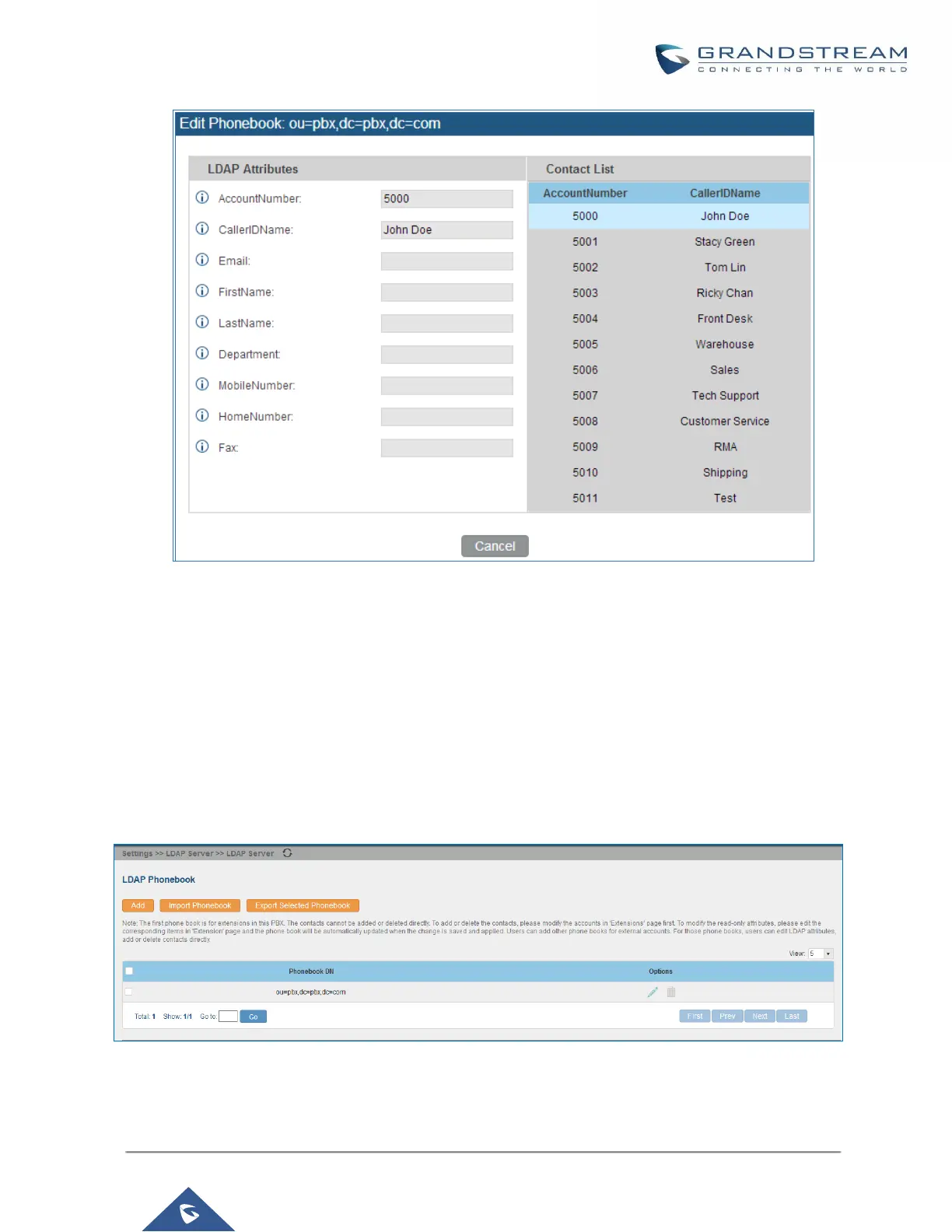

Figure 44: Default LDAP Phonebook Attributes

LDAP Phonebook

Users could use the default phonebook, edit the default phonebook, add new phonebook, import phonebook on

the LDAP server as well as export phonebook from the LDAP server. The first phonebook with default phonebook

dn "ou=pbx,dc=pbx,dc=com" displayed on the LDAP server page is for extensions in this PBX. Users cannot

add or delete contacts directly. The contacts information will need to be modified via Web GUI->PBX->Basic/Call

Routes->Extensions first. The default LDAP phonebook will then be updated automatically.

Figure 45: LDAP Server->LDAP Phonebook
