P a g e | 203

UCM6200 Series User Manual

Create Custom Prompt

To record new IVR prompt or upload IVR prompt to be used in IVR, click on “Prompt” next to the “Welcome

Prompt” option and the users will be redirected to Custom Prompt page. Or users could go to Web GUI->PBX-

>Internal Options->Custom Prompt page directly.

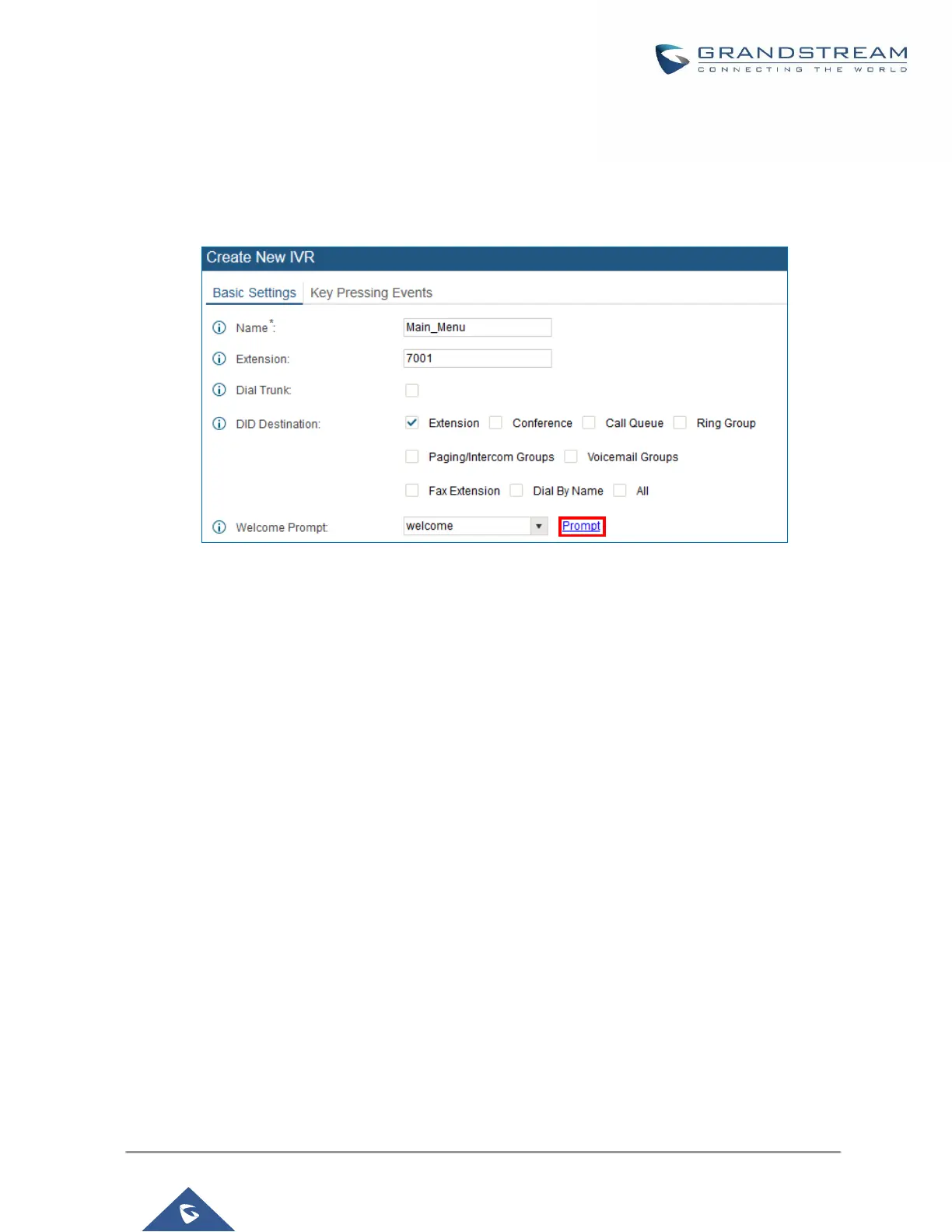

Figure 128: Click on Prompt to Create IVR Prompt

Once the IVR prompt file is successfully added to the UCM6200, it will be added into the prompt list options for

users to select in different IVR scenarios.
