P a g e | 122

UCM6200 Series User Manual

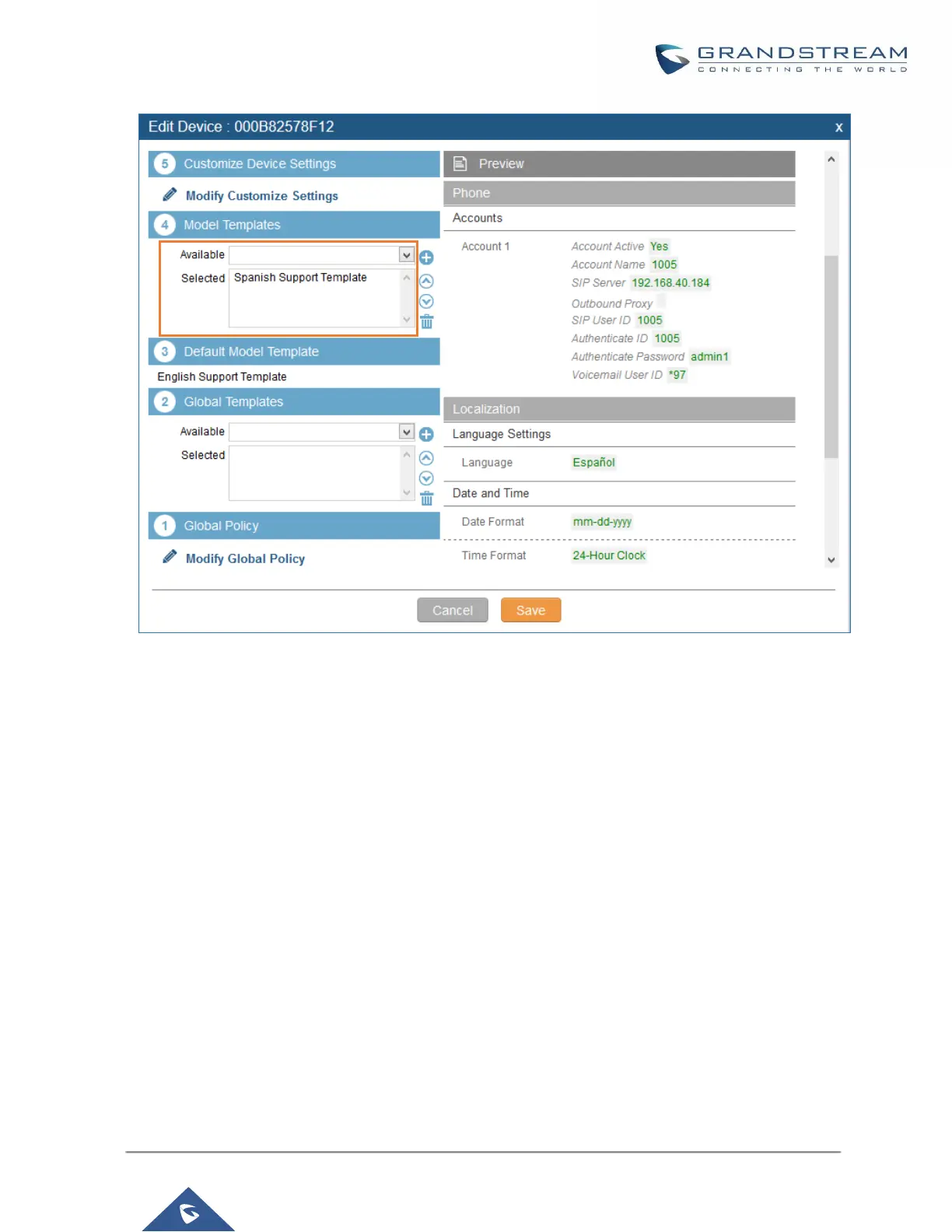

Figure 92: Zero Config Sample - Device Preview 2

Select “Spanish Support Template” in ○

“Model Template”. The preview of the device settings is displayed

on the right side and we can see the language is set to “Español” since Model Template has the higher

priority for the option “Language”, which overrides the value configured in default model template.

9. For the GXV3275 used by the customer support supervisor, select an available extension for account 1 on

“Basic” settings and click on “Save”. Users can see the preview of the device configuration in “Advanced”

settings. There is no model template configured for GXV3275.
