P a g e | 320

UCM6200 Series User Manual

UPGRADING AND MAINTENANCE

Upgrading

The UCM6200 can be upgraded to a new firmware version remotely or locally. This section describes how to

upgrade your UCM6200 via network or local upload.

Upgrading Via Network

The UCM6200 can be upgraded via TFTP/HTTP/HTTPS by configuring the URL/IP Address for the

TFTP/HTTP/HTTPS server and selecting a download method. Configure a valid URL for TFTP, HTTP or HTTPS;

the server name can be FQDN or IP address.

Examples of valid URLs:

firmware.grandstream.com/BETA

The upgrading configuration can be accessed via Web GUI->Maintenance->Upgrade.

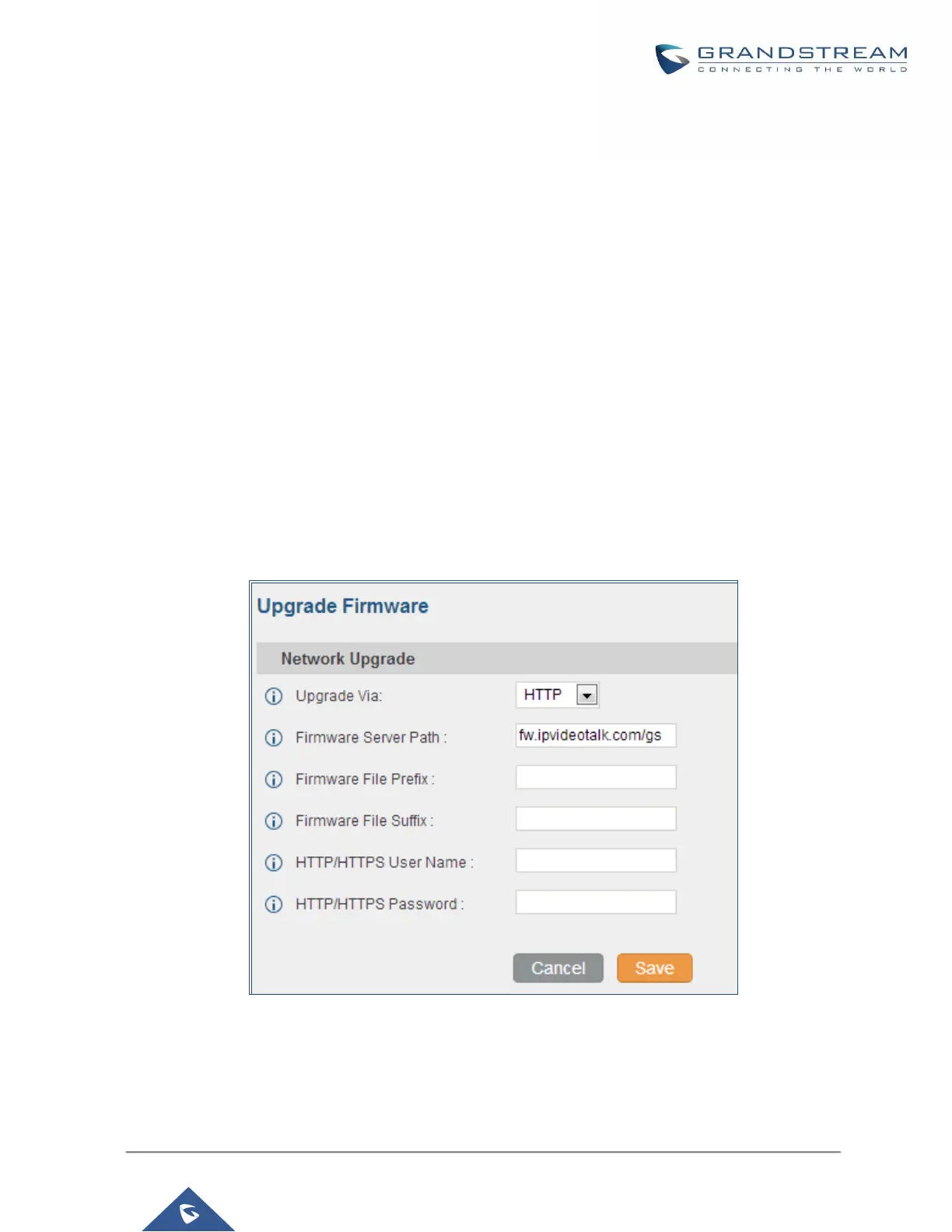

Figure 229: Network Upgrade
