UCM6200 Series User Manual

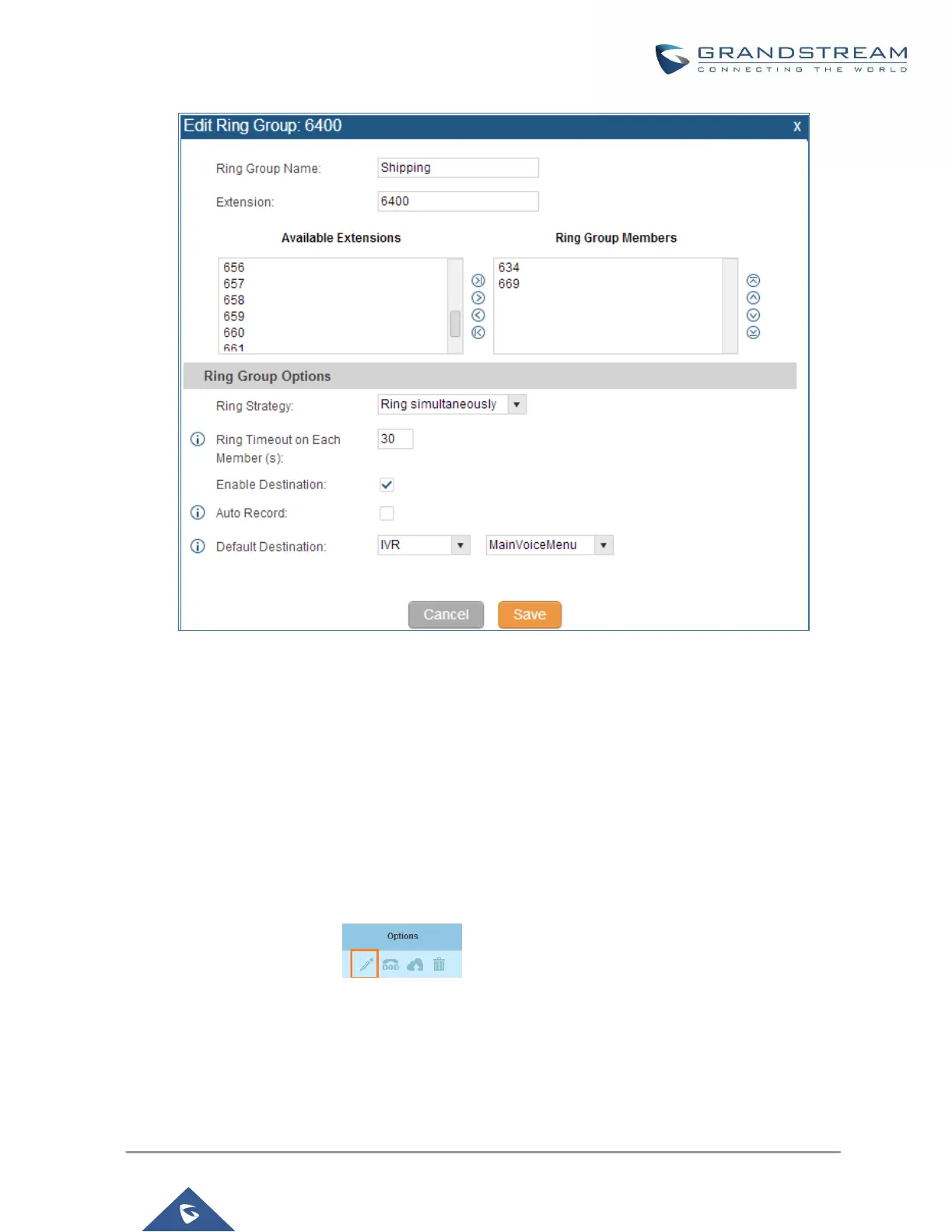

Figure 136: Ring Group Configuration
Remote Extension in Ring Group
Remote extensions from the peer trunk of a remote UCM6200 can be included in the ring group with local
extension. An example of Ring Group with peer extensions is presented in the following:
1. Creating SIP Peer Trunk between both UCM6200_A and UCM6200_B. SIP Trunk can be found under web
UI-> PBX-> Basic/Call Routes-> VoIP Trunks. Also, please configure their Inbound/Outbound routes
accordingly.
2. Click edit button in the menu , and check if Sync LDAP Enable is selected, this option will
allow UCM6200_A update remote LDAP server automatically from peer UCM6200_B. In addition, Sync
LDAP Password must match for UCM6200_A and UCM6200_B in order to sync LDAP contact
automatically. Port number can be anything between 0~65535, and use the outbound rule created in step 1
for the LDAP Outbound Rule option.
