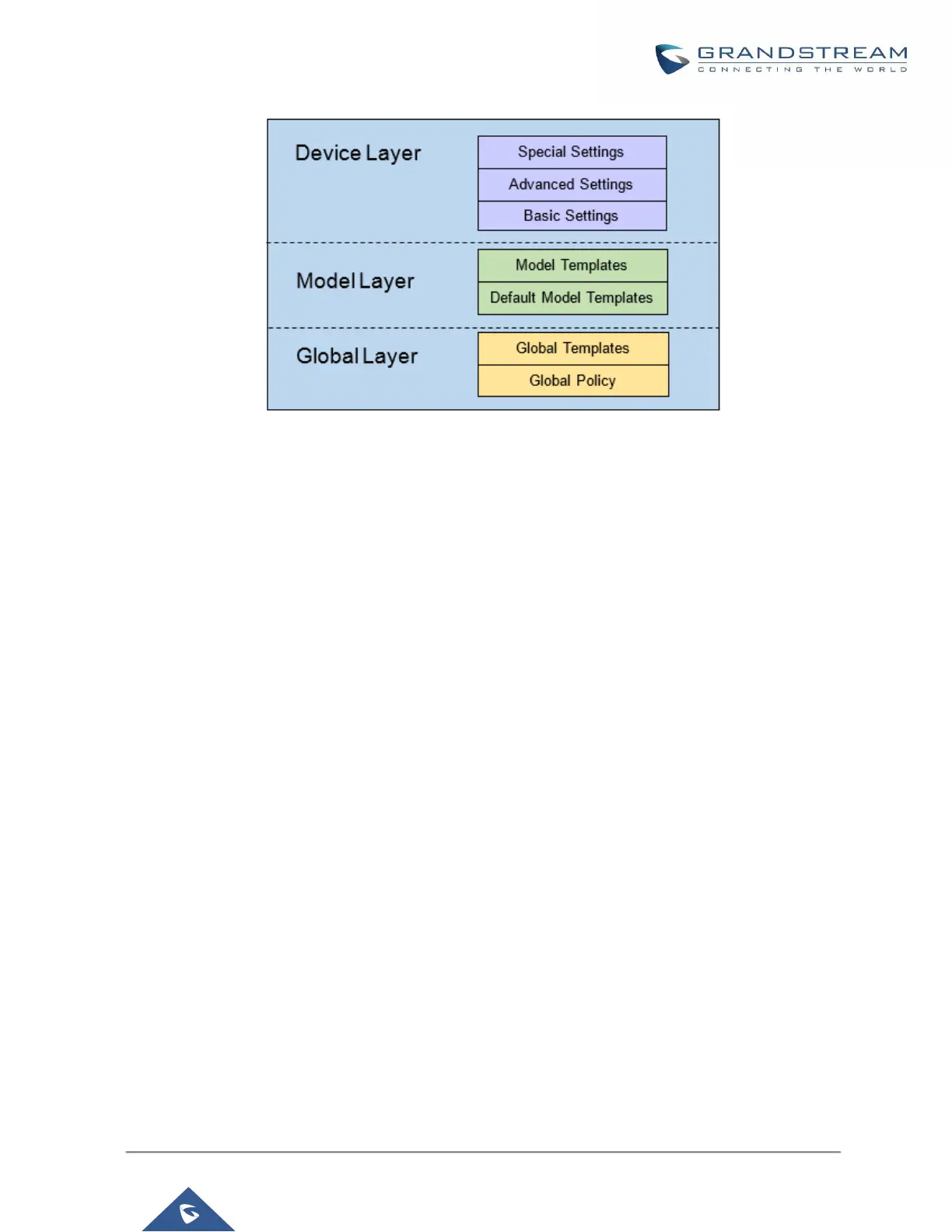

Figure 72: Zero Config Configuration Architecture for End Point Device
The configuration options in model layer and device layer have all the option in global layers already, i.e., the
options in global layer is a subset of the options in model layer and device layer. If an option is set in all three
layers with different values, the highest layer value will override the value in lower layer. For example, if the user
selects English for Language setting in Global Policy and Spanish for Language setting in Default Model
Template, the language setting on the device to be provisioned will use Spanish as model layer has higher
priority than global layer. To sum up, configurations in higher layer will always override the configurations
for the same options/fields in the lower layer when presented at the same time.
After understanding the zero config configuration architecture, users could configure the available options for
end point devices to be provisioned by the UCM6200 by going through the three layers. This configuration
architecture allows users to set up and manage the Grandstream end point devices in the same LAN area in a
centralized way.
Auto Provisioning Settings
By default, the Zero Config feature is enabled on the UCM6200 for auto provisioning. Three methods of
auto provisioning are used.
