System Events

The UCM6200 can monitor important system events, log the alerts and send Email notifications to the system

administrator.

Alert Events List

The system alert events list can be found under Web GUI->Status->System Events->Alert Events List. The

following event are currently supported on the UCM6200 which will have alert and/or Email generated if occurred:

Disk Usage

External Disk Usage

Modify Admin Password

Memory Usage

System Reboot

System Update

System Crash

Restore Config

User Login Success

User Login Failed

SIP Internal Call Failure

SIP Outgoing Call through Trunk Failure

Fail2ban Blocking

SIP Lost Registration

SIP Peer Trunk Status

Click on to configure the parameters for each event. See examples below.

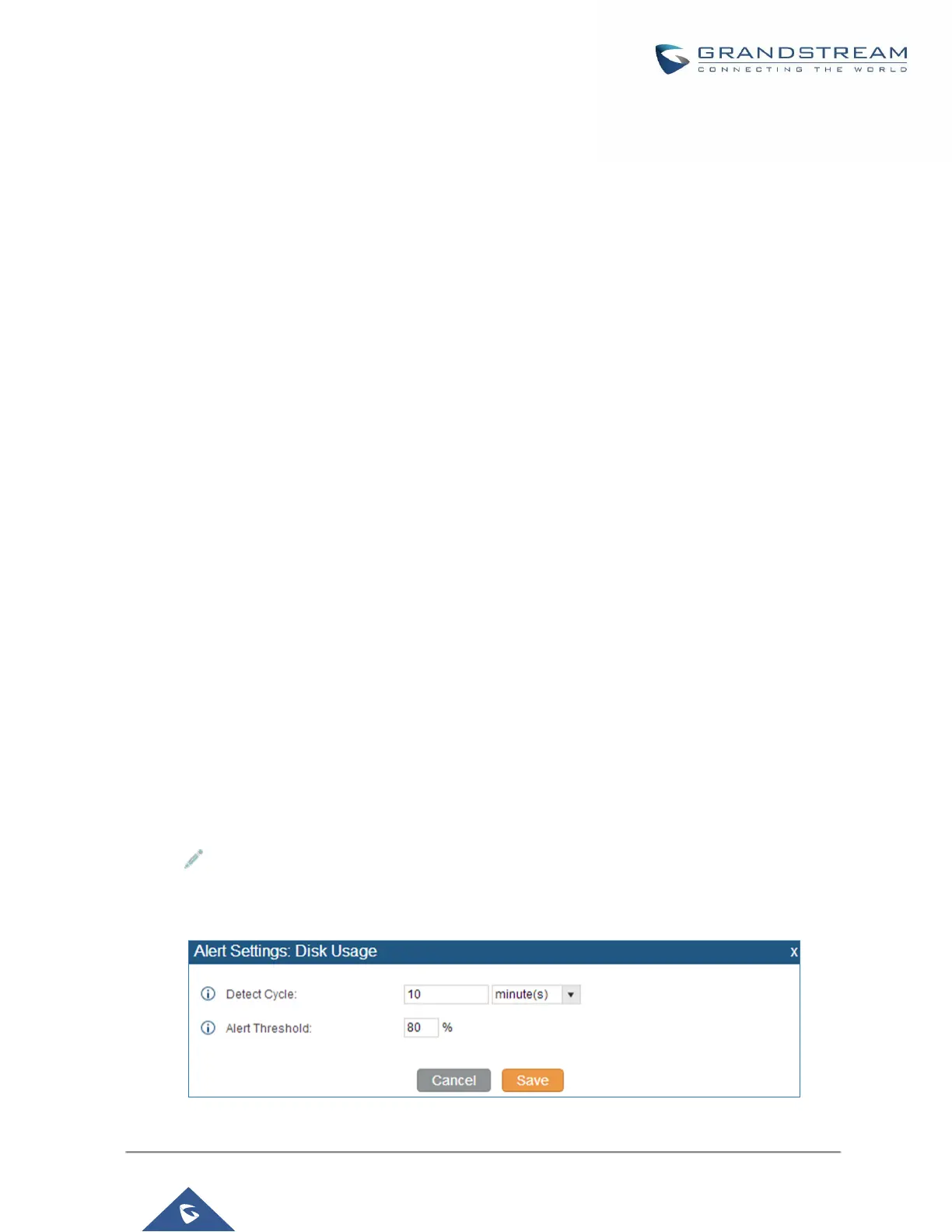

1. Disk Usage.
