 If there is only one FXO port connected to PSTN line, use the following settings for auto-detection.

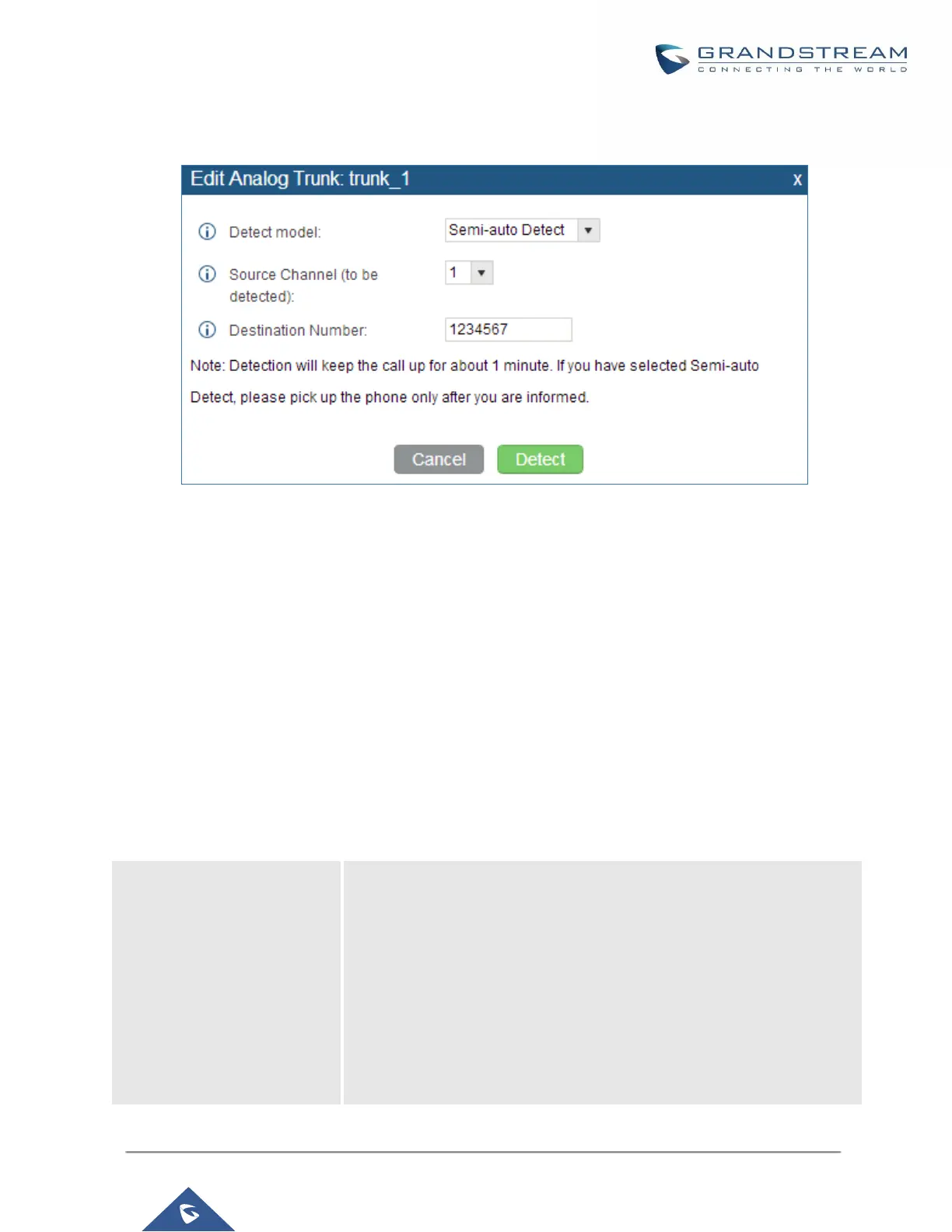

Figure 110: UCM6200 PSTN Detection: Semi-Auto Detect
Detect Model: Semi-auto Detect.
Source Channel: The source channel to be detected.
Destination Number: The number to be dialed for detecting. This number could be a cell phone number
or other PSTN number that can be reached from the source channel PSTN number.
5. Click "Detect" to start detecting. The source channel will initiate a call to the destination number. For "Auto
Detect", the call will be automatically answered. For "Semi-auto Detect", the UCM6200 web GUI will display
prompt to notify the user to answer or hang up the call to finish the detecting process.
6. Once done, the detected result will show. Users could save the detecting result as the current UCM6200
settings.
Table 52: PSTN Detection for Analog Trunk
Detect Model
Select "Auto Detect" or "Semi-auto Detect" for PSTN detection.
 Auto Detect
Please make sure two or more channels are connected to the
UCM6200 and in idle status before starting the detection. During the
detection, one channel will be used as caller (Source Channel) and
another channel will be used as callee (Destination Channel). The
UCM6200 will control the call to be established and hang up between
caller and callee to finish the detection.
 Semi-auto Detect
Semi-auto detection requires answering or hanging up the call
