P a g e | 232

UCM6200 Series User Manual

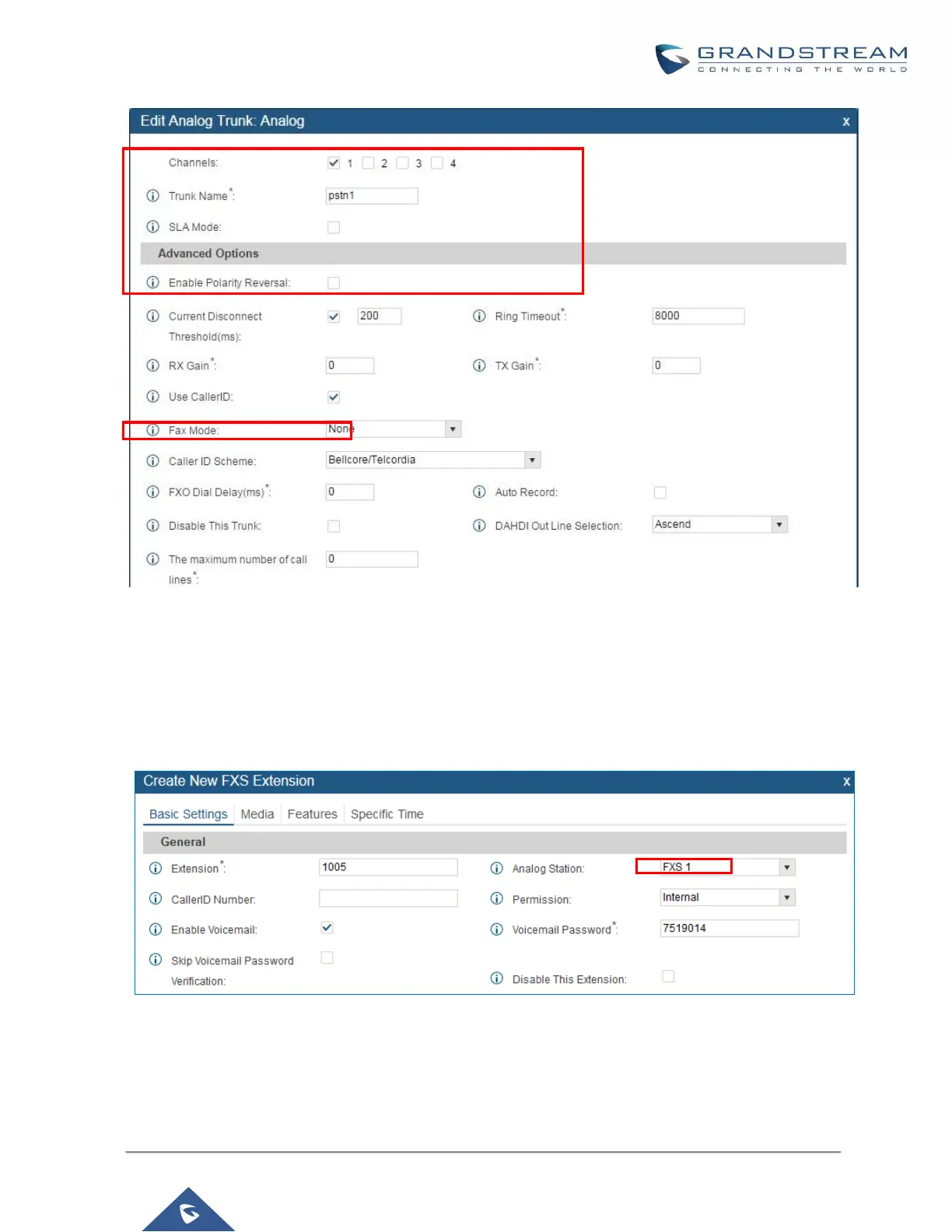

Figure 152: Configure Analog Trunk without Fax Detection

5. Go to UCM6200 web GUI->PBX->Basic/Call Routes->Extensions page.

6. Create or edit the extension for FXS port.

 Analog Station: Select FXS port to be assigned to the extension. By default, it's set to "None".

 Once selected, analog related settings for this extension will show up in "Analog Settings" section.

Figure 153: Configure Extension for Fax Machine: FXS Extension
