ACTIVE CALLS AND MONITOR
The active calls on the UCM6200 are displayed in web UI->Status->Active Calls page. Users can monitor the
status, hang up the call as well as barge in the active calls in real time manner.
Active Calls Status
To view the status of active calls, navigate to web GUI->Status->Active Calls. The following figure shows
extension 1000 is calling 1001. 1001 is ringing.

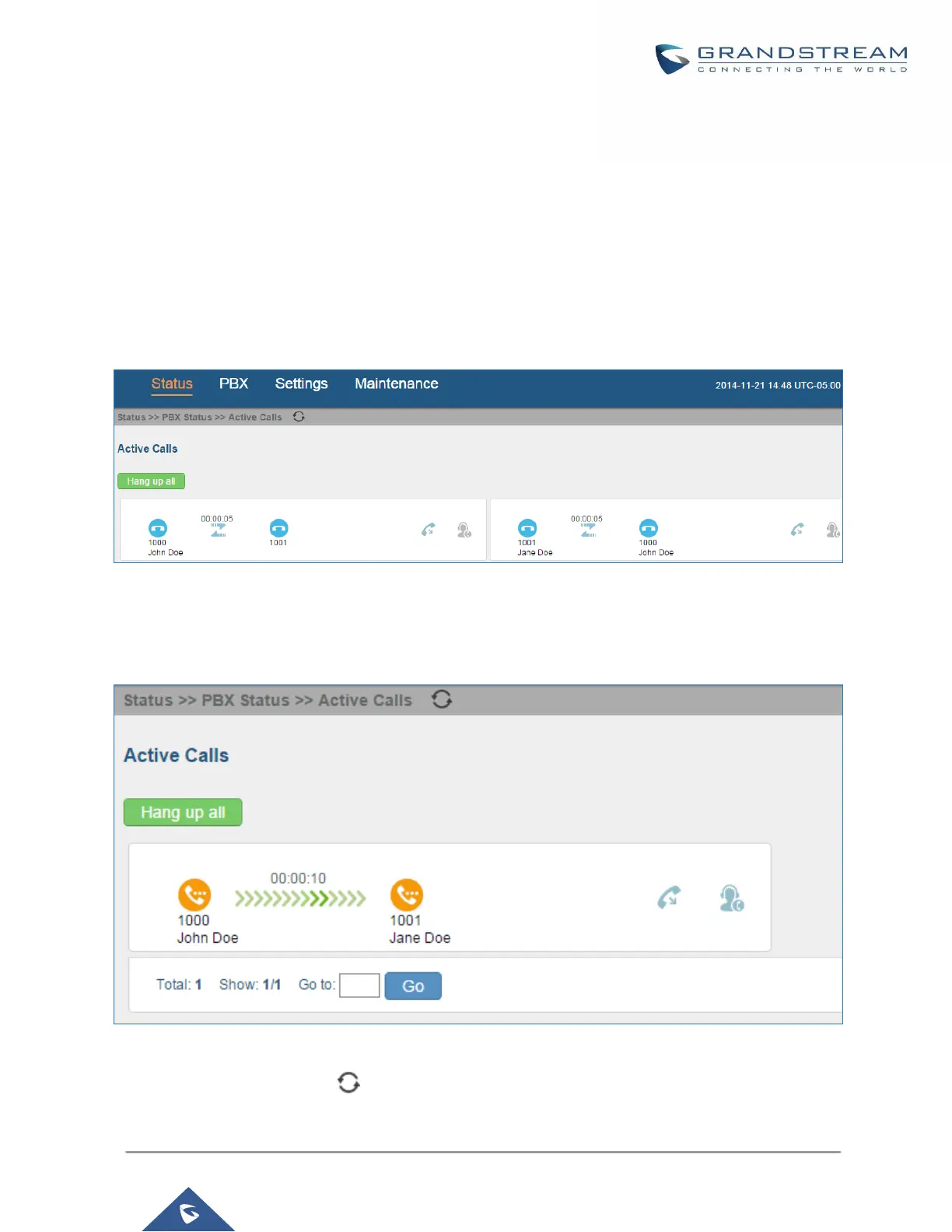

Figure 169: Status->PBX Status->Active Calls - Ringing
The following figure shows the call between 1000 and 1001 is established.
Figure 170: Status->PBX Status->Active Calls – Call Established
In active call web page, click on to refresh the active call status.
