P a g e | 98

UCM6200 Series User Manual

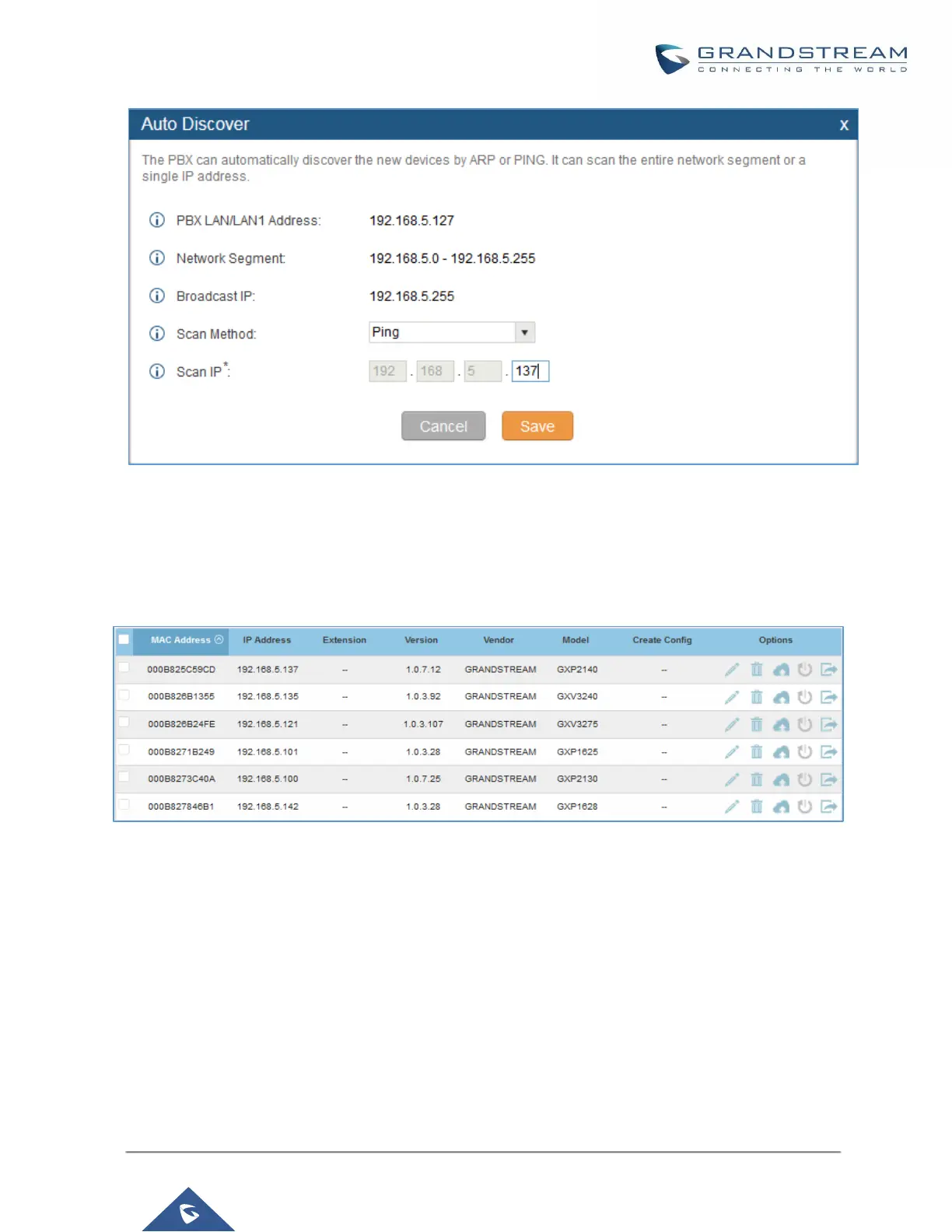

Figure 75: Auto Discover

The following figure shows a list of discovered phones. The MAC address, IP Address, Extension (if assigned),

Version, Vendor, Model, Connection Status, Create Config, Options (Edit /Delete /Update /Reboot /Access

Device WebGUI) are displayed in the list.

Figure 76: Discovered Devices

Global configuration

Global policy

Global configuration will apply to all the connected Grandstream SIP end point devices in the same LAN with the

UCM6200 no matter what the Grandstream device model it is. It is divided into two levels:

 Web UI->PBX->Zero Config->Global Policy

 Web UI->PBX->Zero Config->Global Templates.
