BASIC OPERATION
109

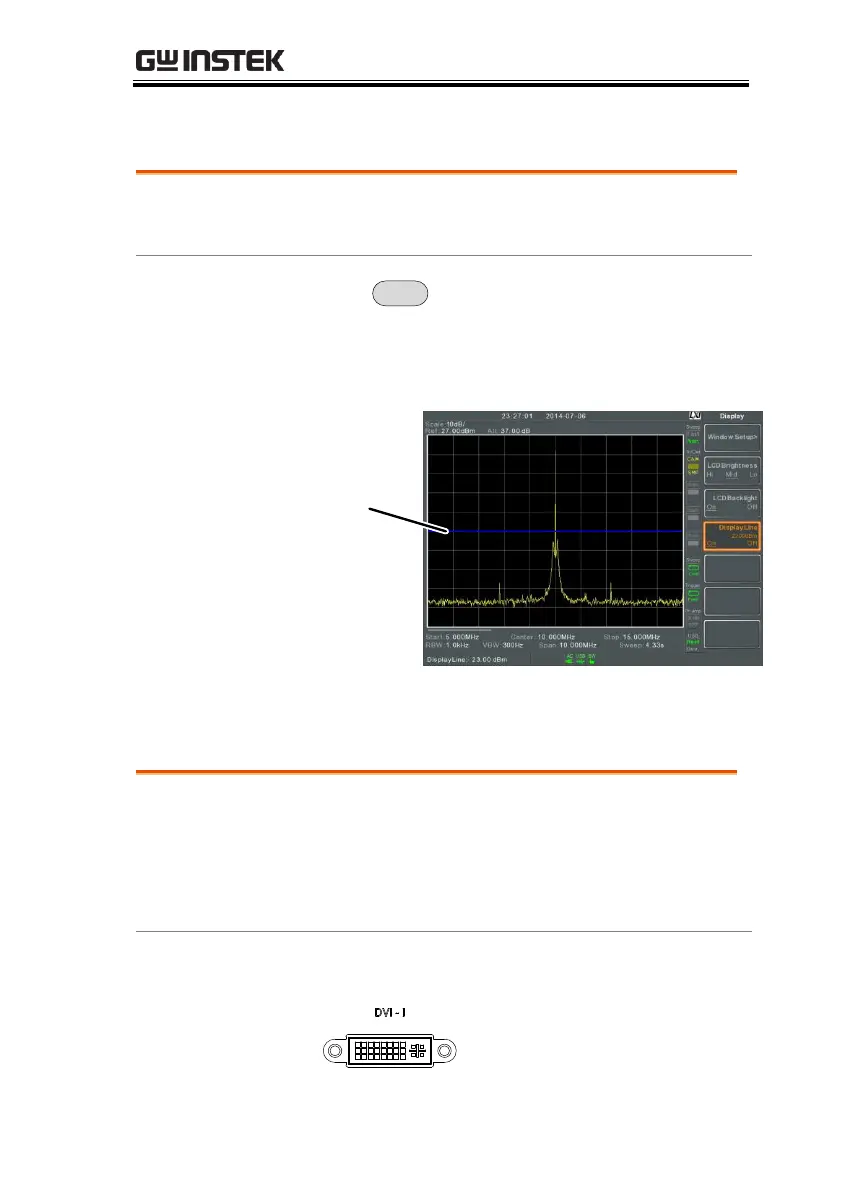

Setting a Display Line (Reference Level Line)
The Display Line function is used to super-
impose a reference level line over the traces.
1. Press
Display
> Display Line[F4] to turn the
display line on.
2. Set the display line level and unit.
Display line
Display line set at -50dBm
Using the Video Out Port
The GSP-9300 has a dedicated DVI terminal to
output the display to an external monitor. The
video output is always on.
Output resolution
800 x 600 (fixed)
1. Connect an external monitor to the rear panel
DVI terminal.
