GW Instek GSP-9300 User Manual

BASIC OPERATION
77

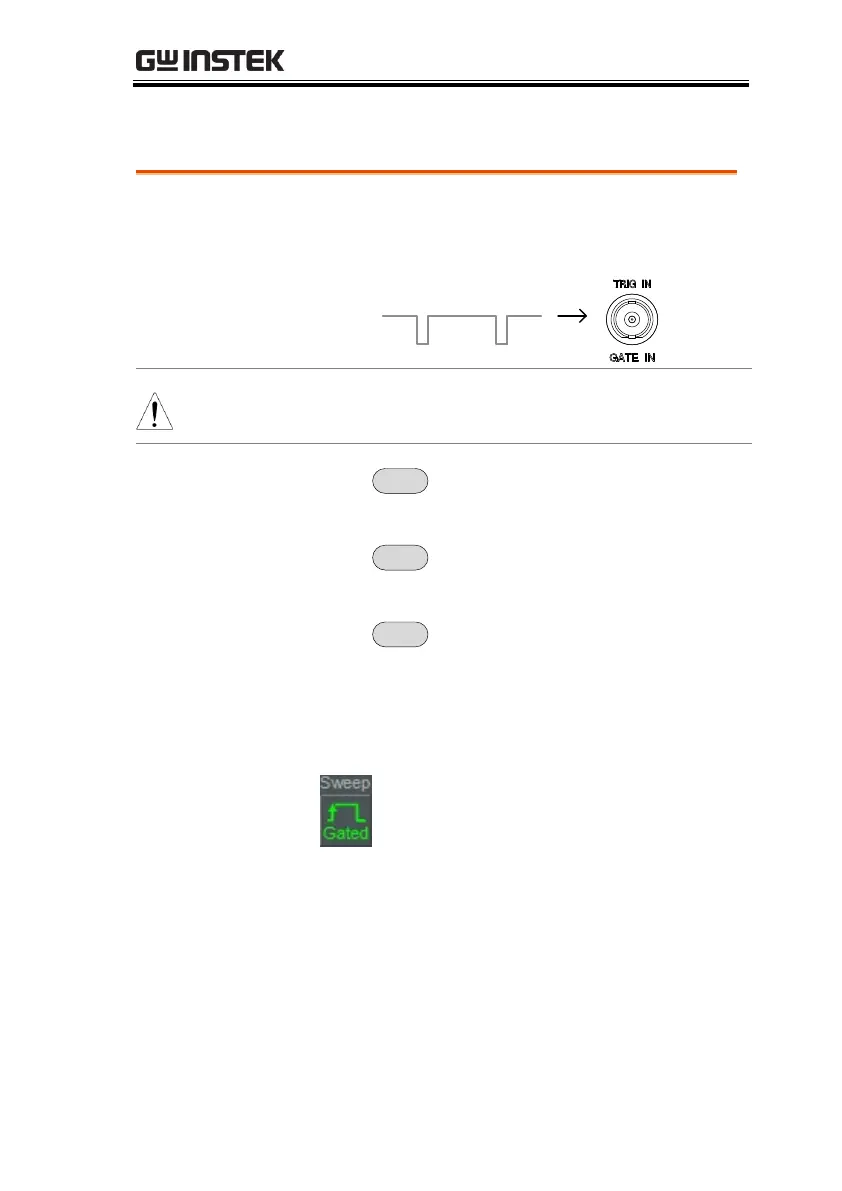

Using the Gated Sweep Mode
Connection
1. Connect a trigger signal (3.3v CMOS) to the
GATE IN port on the rear panel.
Trigger
Note
RBW must be equal to or greater than 10kHz for
the gated sweep mode function to be available.
Operation
1. Press
Sweep
> GateDelay[F5] and set the gate
delay time.
2. Press
Sweep
> Gated Length[F6] and set the gate
time length.
3. Press
Sweep
> Gated Sweep[F4] and turn the
mode on.
Gate Delay:
Gate Length:
0s ~ 1000s
58us ~ 1000s
Display Icon
The Sweep Gated icon is displayed when
Gated Sweep is turned on.
