GSP-9300 User Manual
78

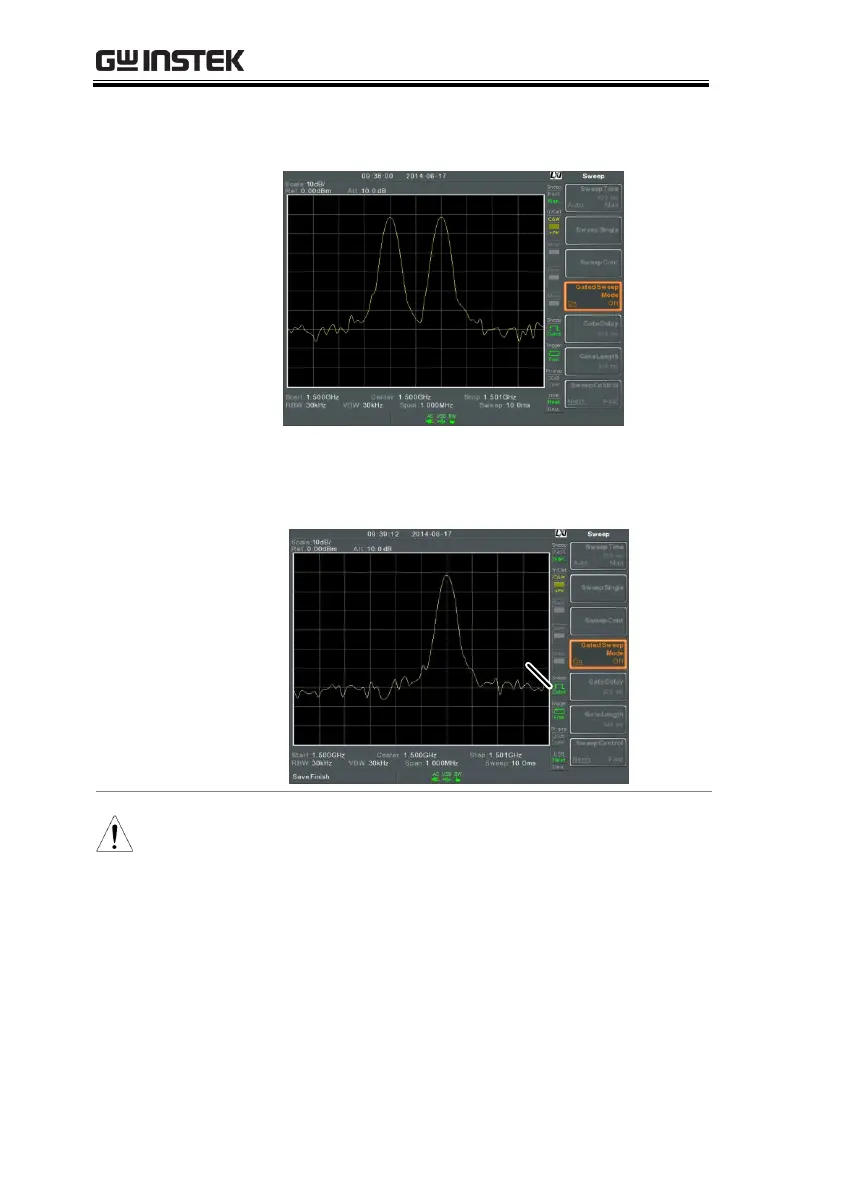

Example:
The example below shows the spectrum of an FSK
modulated signal when gated sweep mode is off.
The example below shows the same signal with the
gated sweep timed to sweep when only the desired
frequency is output.
Gated sweep icon
Note
Gate Delay and Gate Length must first be set
before Gated Sweep is turned on.
