Appearance

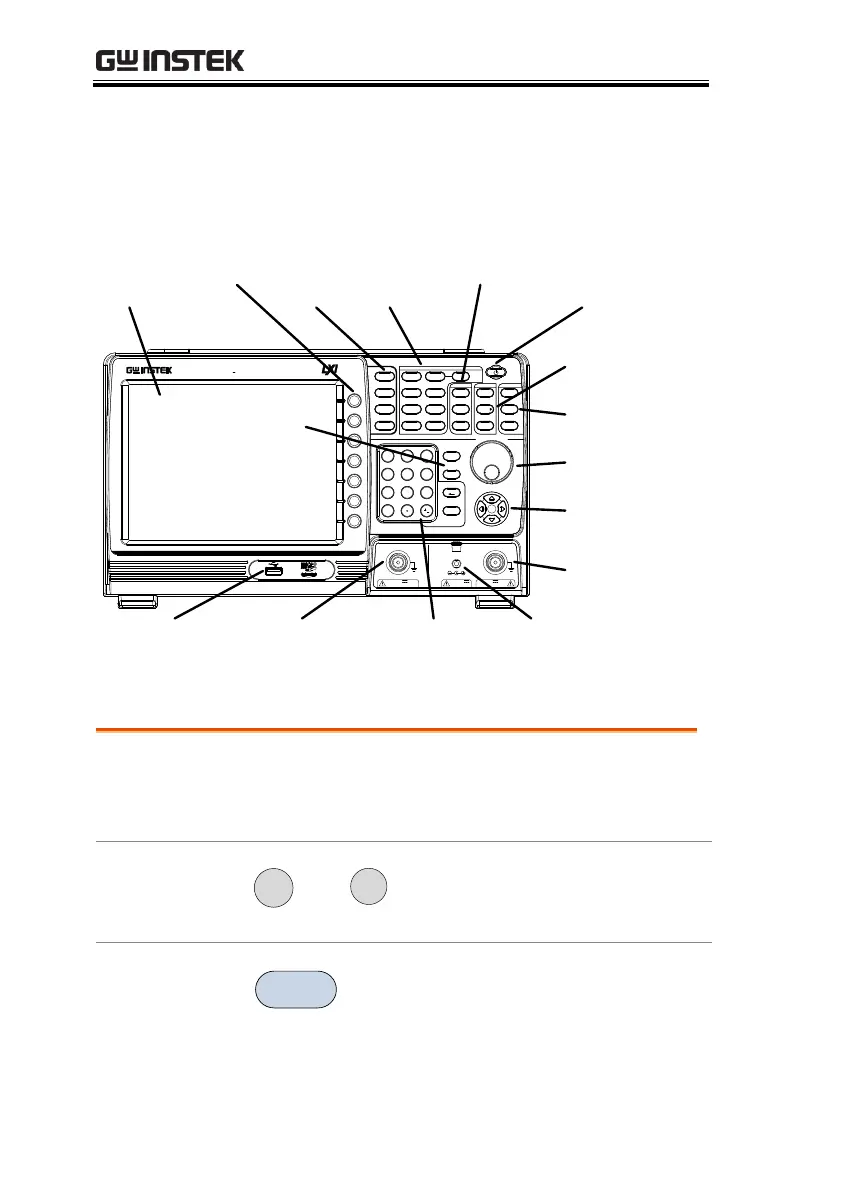

GSP-9300 Front Panel
LOCAL
CONTROL
FILE AUXILIARY
Frequency
Autoset
Amplitude
Span
BW /AVG
Display
Trace
Sweep
Measure
Trigger
File
Recall
Save
Peak
Marker
Marker
System
Preset
Search
Quick
Save
EMC
Pretest
7
4
1
0
8
5
2
9
6
3
/
Enter
BK SP
Sweep
Mode
Limit
Line
Sequence
Option
Control
Fast/
Normal
F 4
F 3
F 2
F 1
F 6
F 5
F 7
RF INPUT 50
REV PWR +30 dBm
TG OUTPUT 50
W W
500 mA MAX.
DC 7 V
OUTPUT +30 dBm MAX .
MAX.DC ± 50V MAX.DC ±50V
9 kHz 3 GHz
Spectrum Analyzer
G S P - 9 3 0 0
LCD
display
Main
keys
Function
keys
Control
keys
Power key
File keys
Auxiliary keys
Scroll wheel
Arrow keys
RF input
terminal
DC power
supply
Tracking
generator
output
Numeric,
Enter and
BK SP keys
USB A,
Micro SD
port
Marker keys
Preset/Local
and Quick
Save keys
MARKER
LCD display
800600 color LCD display. The display shows the
soft keys for the current function, frequency,
amplitude and marker information.
Function keys
F 1
~
F 7
The F1 to F7 function keys directly
correspond to the soft keys on the
right-hand side of display.
Main keys
Frequency
Sets the center frequency, start
frequency, stop frequency, center
frequency step and frequency
offset values.
