ADVANCED OPERATION
189
CSO measurements

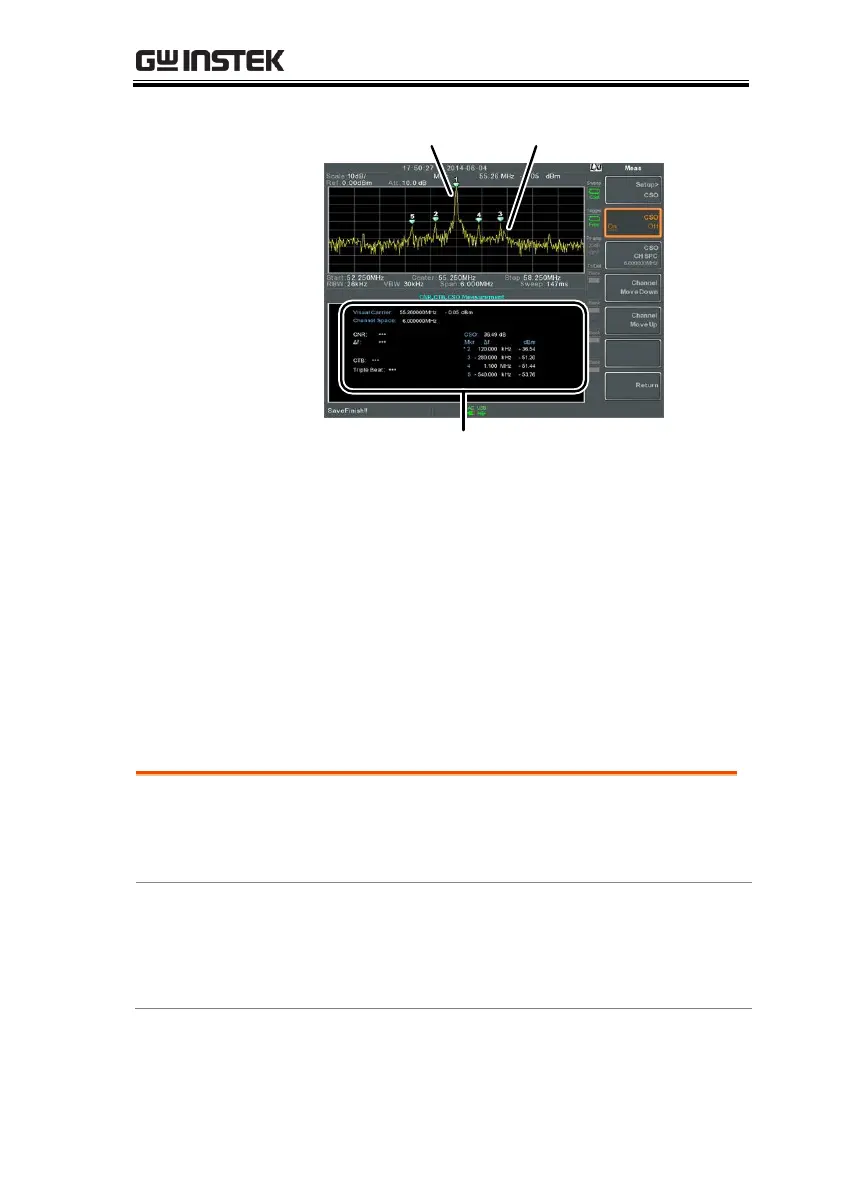

Visual carrier
marker
CSO beat
marker
4. Press CSO CH SPC[F3] to set the channel space.
Range:
0~3GHz
5. Press Channel Move Down[F4] or Channel Move
Up [F5] to move to next or previous channel.
Composite Triple Beat (CTB)
Description
Composite triple beat measurement calculates
the difference in amplitude between the visual
carrier and the composite triple beat amplitude.
Measurement
items
Visual Carrier: frequency, amplitude
CTB: amplitude difference from the visual
carrier and the triple beat
Triple Beat: amplitude
