ADVANCED OPERATION
243
Demo Kit
The demo kit is an ASK and FSK generator. The demo kit has three
pre-set frequencies, a number of baud rates and the ability to
output in normal mode, gated mode or in one of 5 selectable data
sequences.
 Amplitude shift keying → from page 243.
 Frequency shift keying → from page 245.
Amplitude Shift Keying

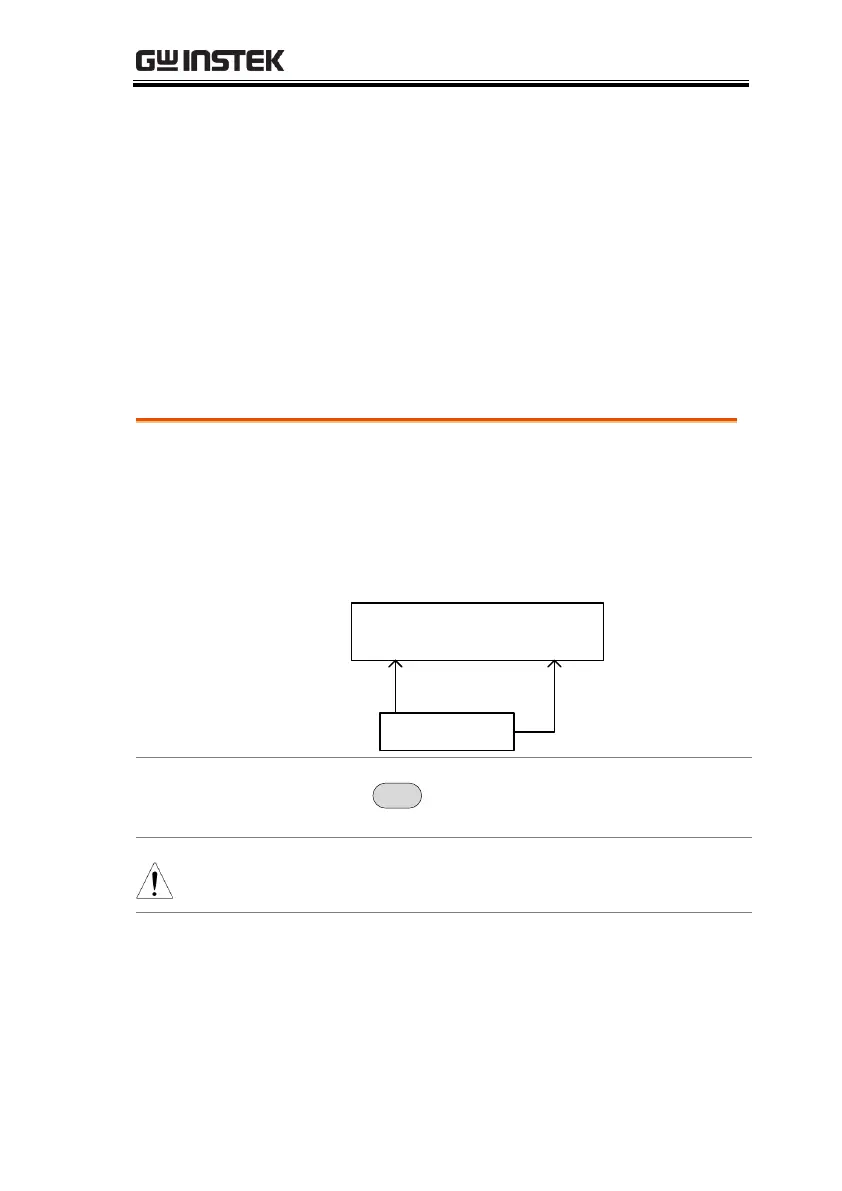

Connection
Connect the demo kit to the front panel USB A
port on the GSP-9300.
Connect the demo kit output to the RF input on
the GSP-9300.
GSP
DEMO KIT
USB A
PORT
RF
INPUT
Setup
1. Press
Option
Control
> Demo Kit[F4]>Demo Kit[F1] and
toggle the demo kit on.
Note
The demo kit option will not be available if the
demo kit is not connected properly.
2. Press Modulation[F2] and select ASK[F1].
3. Press Frequency[F3] and select the frequency:
Frequency
315MHz, 433MHz,
868MHz
