GW Instek GSP-9300 User Manual

GSP-9300 User Manual
64
Autoset
The Autoset function searches the peak signals in two stages (full
span & 0Hz - 100MHz limited span), picks the signal peak with the
maximum amplitude, and then shows it in the display.
Using Autoset
Operation
1. Press
Autoset
> Autoset[F1].
Autoset Range
Amplitude:
Span:
-80dBm ~ +20dBm
0Hz ~ 3GHz

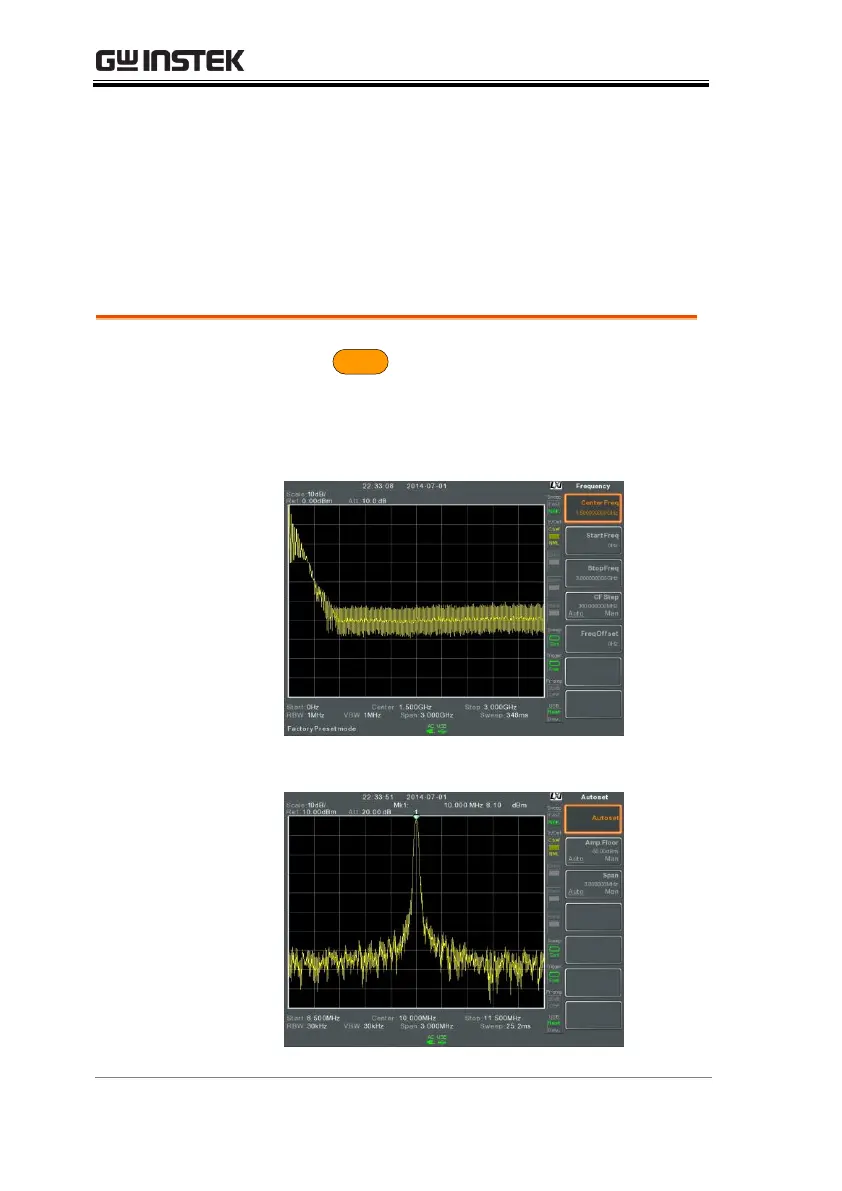

Example:
Before Autoset, preset state
After Autoset
