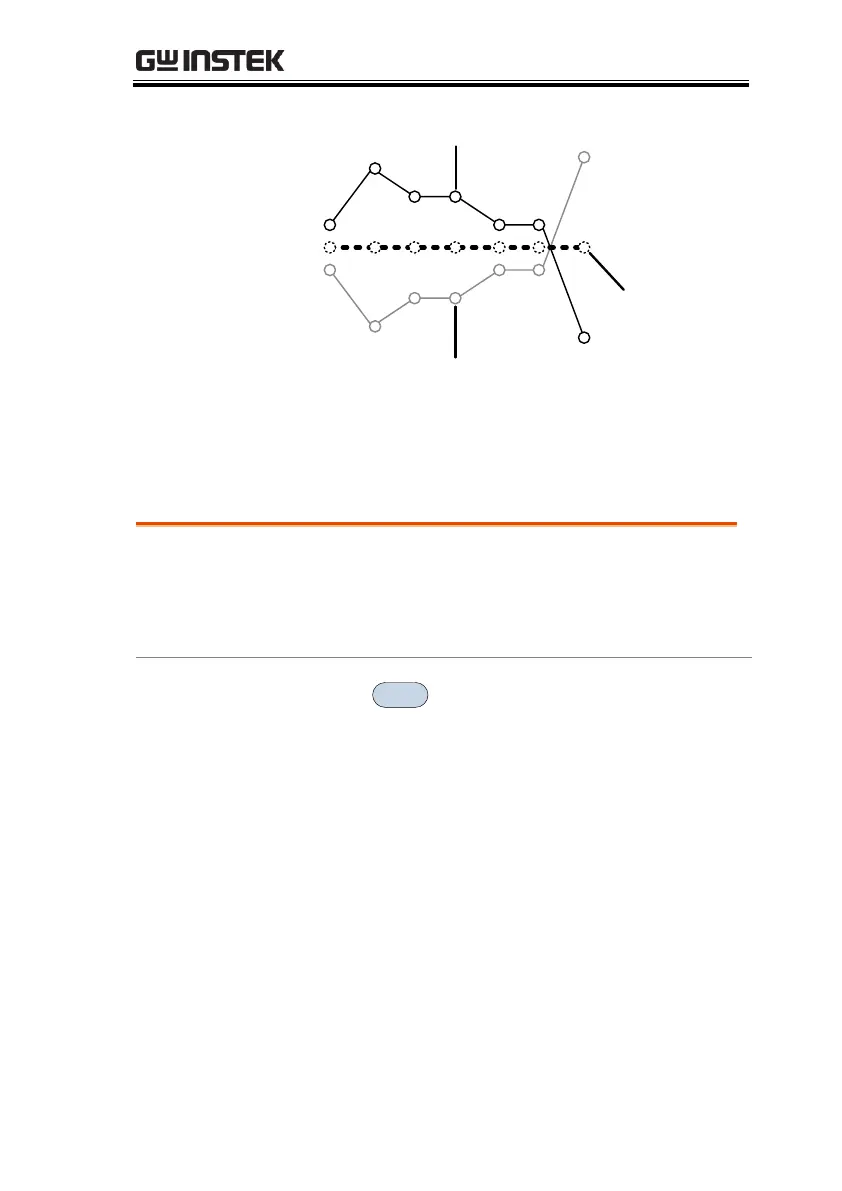

Example: The diagram above shows how amplitude
correction is used to compensate for any losses or
gains at specific frequencies.
Create a Correction Set
Description
The GSP-9300 can create and edit up to 5 sets of
correction points. The correction points and
associated values are all tabulated for ease of
use.
Operation
1. Press
Amplitude
> More[F7]>Correction[F3]> Select
Correction[F1] and choose a correction set to
edit/create.
Correction set:
1~5
