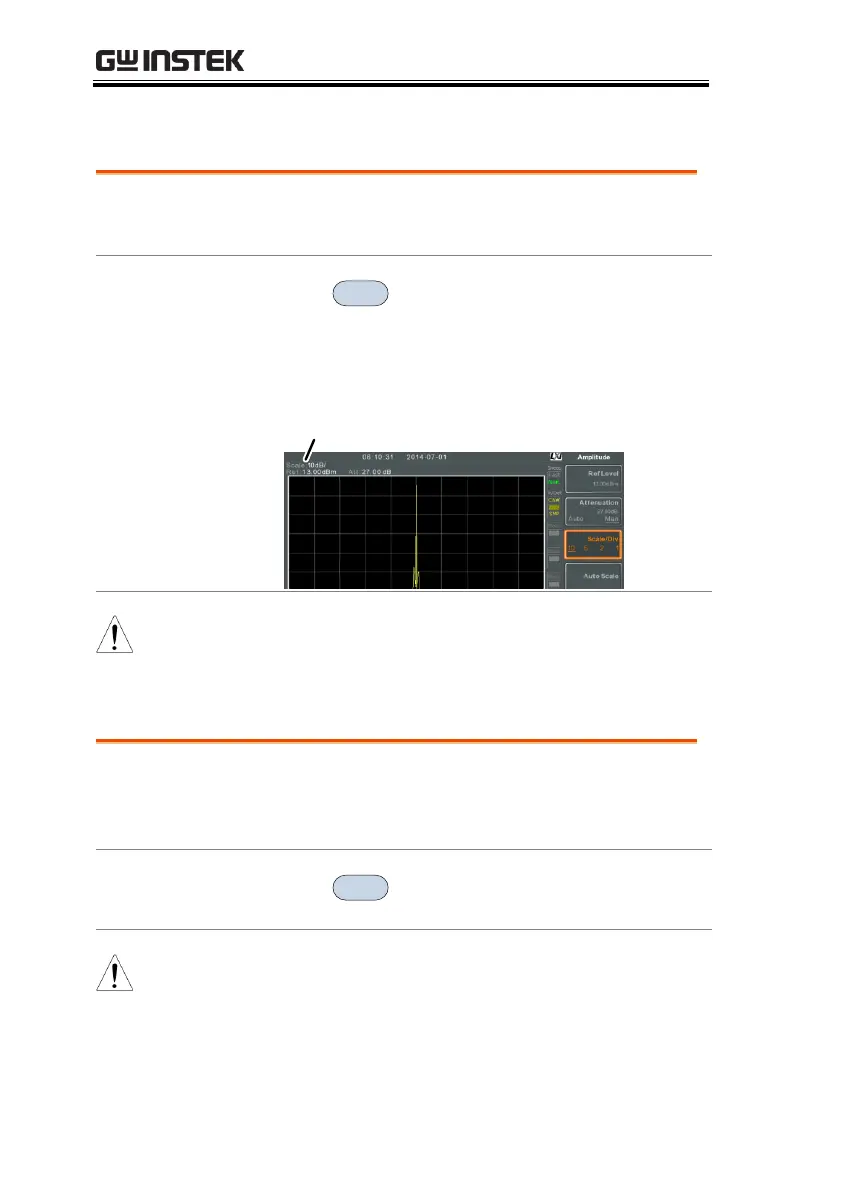

GSP-9300 User Manual
50
Scale/Div
Description
Sets the logarithmic units for the vertical
divisions when the scale is set to Log.
Operation
1. Press
Amplitude
> Scale/Div[F3] repeatedly to select
the vertical division units.
Unit Range:
10, 5, 2, 1
Display
Scale
Note
The Scale/Div function is only selectable when the
scale is set to Log (logarithmic).
Auto Scale
Description
The Auto Scale function will automatically set
the Scale/Div, Reference level and Attenuation
(if set to Auto) to best display the spectrum.
Operation
1. Press
Amplitude
> Auto Scale[F4] to turn the Auto
Scale function on.
Note
This function is applicable to both the linear and
logarithmic scales.
