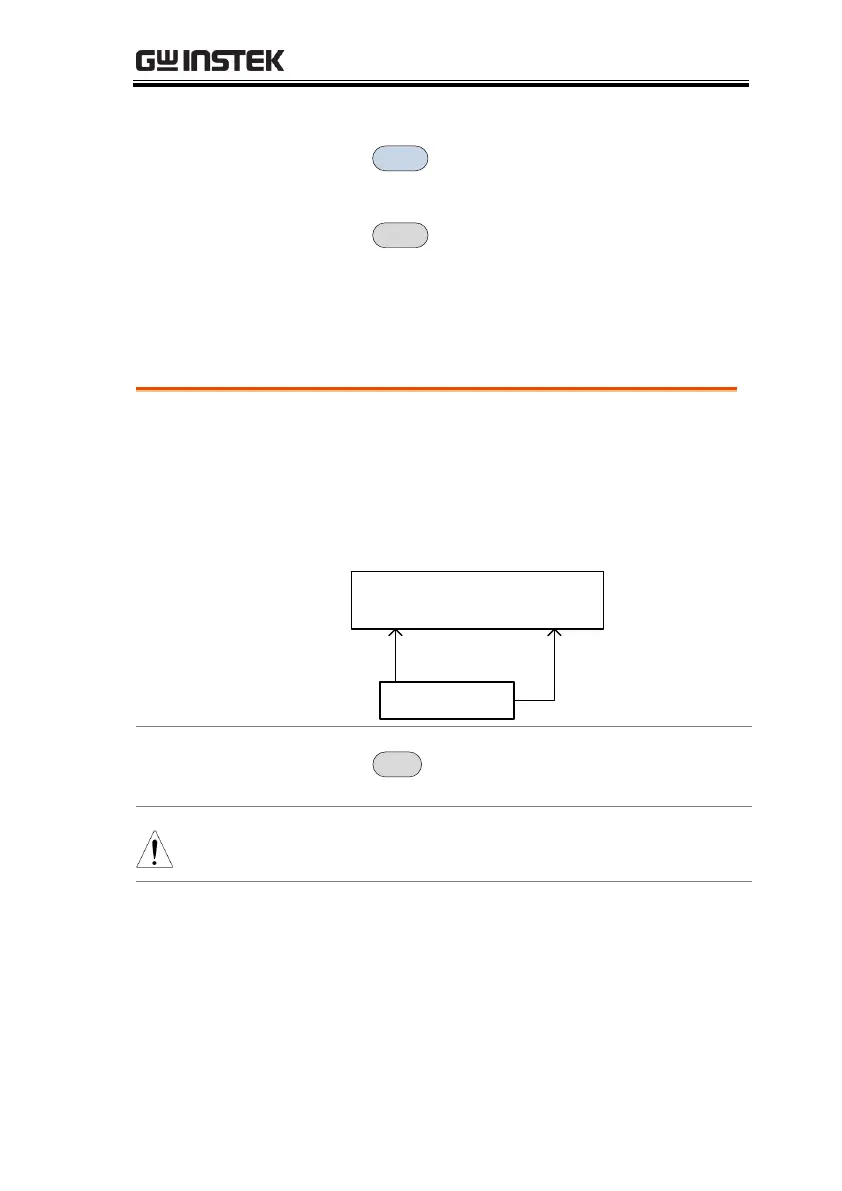

GW Instek GSP-9300 User Manual

ADVANCED OPERATION
245
frequency to 315MHz.
2. Press
Span
>Span[F1] and set the span to
200kHz.
3. Press
Measure
>Demod[F2]>ASK[F4] and toggle
ASK on.
See page 144 for setting details.
Frequency Shift Keying
Connection
Connect the demo kit to the front panel USB A
port on the GSP-9300.
Connect the demo kit output to the RF input on
the GSP-9300.
GSP
DEMO KIT
USB A
PORT
RF
INPUT
Setup
1. Press
Option
Control
> Demo Kit[F4]>Demo Kit[F1] and
toggle the demo kit on.
Note
The demo kit option will not be available if the
demo kit is not connected properly.
2. Press Modulation[F2] and select FSK[F2].
3. Press Frequency[F3] and select the frequency:
Frequency
315MHz, 433MHz,
868MHz
