GW Instek GSP-9300 User Manual

GSP-9300 User Manual
76
3. The end of the gate time is determined by the
set gate length.
4. The gated sweep should not be positioned at
either end of the transmission.
Delay Length
Gate
Trigger
RF Burst
period

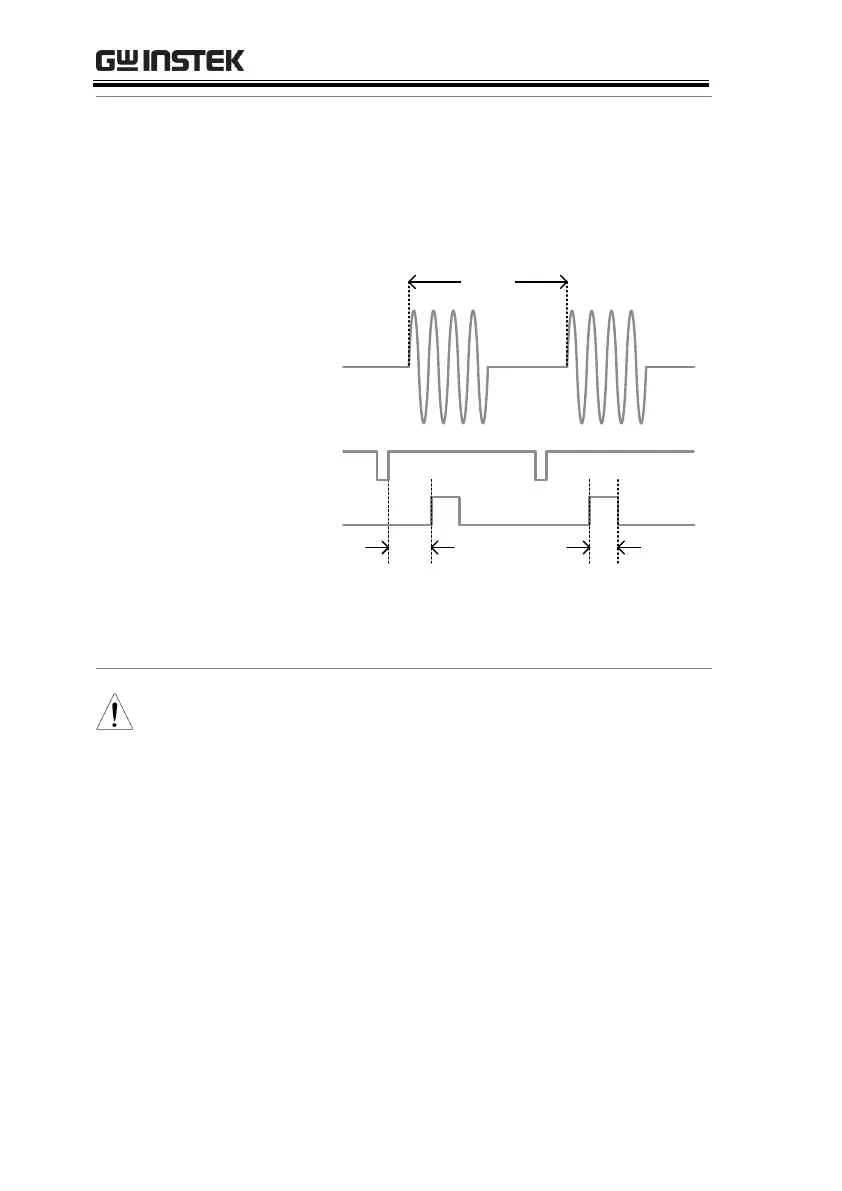

Example: The diagram above demonstrates the
relationship between the input trigger, the input
signal and the position of the gated sweep relative
to the input signal.
Note
Please take into consideration RBW settling time.
Setting the delay time too short may not leave
enough time for the RBW filter to resolve.
