GW Instek GSP-9300 User Manual

ADVANCED OPERATION
131

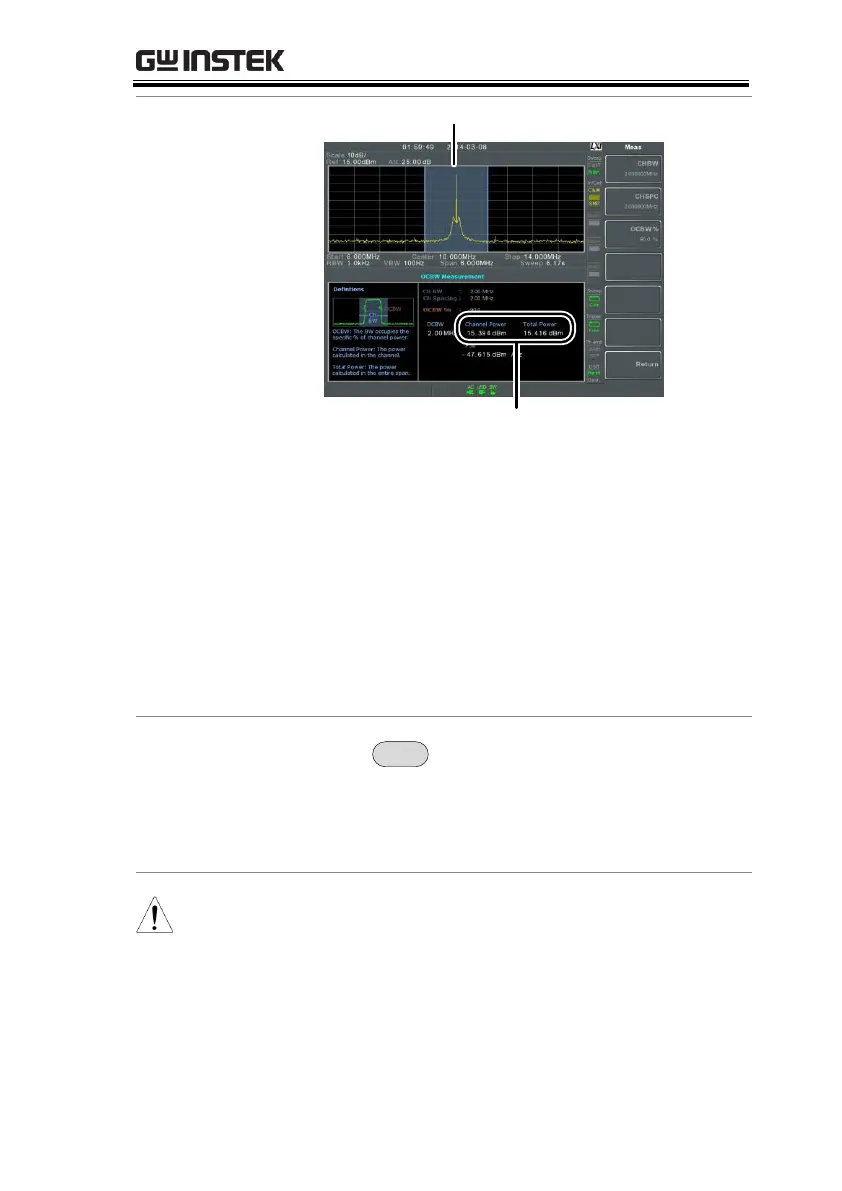

Channel power and total
power results
CH BW
3. Press OCBW Setup[F3] to enter the OCBW
setup:
CHBW[F1]
Set the channel
bandwidth.
CH SPC[F2]
Set the channel space
between main channels.
OCBW%[F3]
Set the % of the OCBW
to CHBW.
Move Channels
Up/Down
1. Press
Measure
> Channel Analysis[F1] and select:
Channel Move Up[F5]
Next main channel.
Channel Move
Down[F6]
Previous main channel.
Note
The channel space (CH SPC) parameter
determines where the next main channel is
located.
The CH SPC parameters from the ACPR and
OCBW setups are independent.
