GW Instek GSP-9300 User Manual

ADVANCED OPERATION
149
Operation:
configuration
1. Press
Measure
> Demod[F2]>ASK[F4]>
More[F7]>Limit[F45] and set the limits.
AM Depth[F2]
If the measured depth is
above this limit, it will be
judged as Fail.
Carr. Offset[F3]
If the measured carrier
offset is above this limit,
it will be judged as Fail.
Carr. Power[F4]
If the measured carrier
power is above this limit,
it will be judged as Fail.
2. Press Limit and turn the limit on or off on.
3. The ASK Measurement area in the bottom half
of the screen will now include Pass/Fail
indicators for the AM depth, carrier offset and
carrier power.
Pass:
Fail:

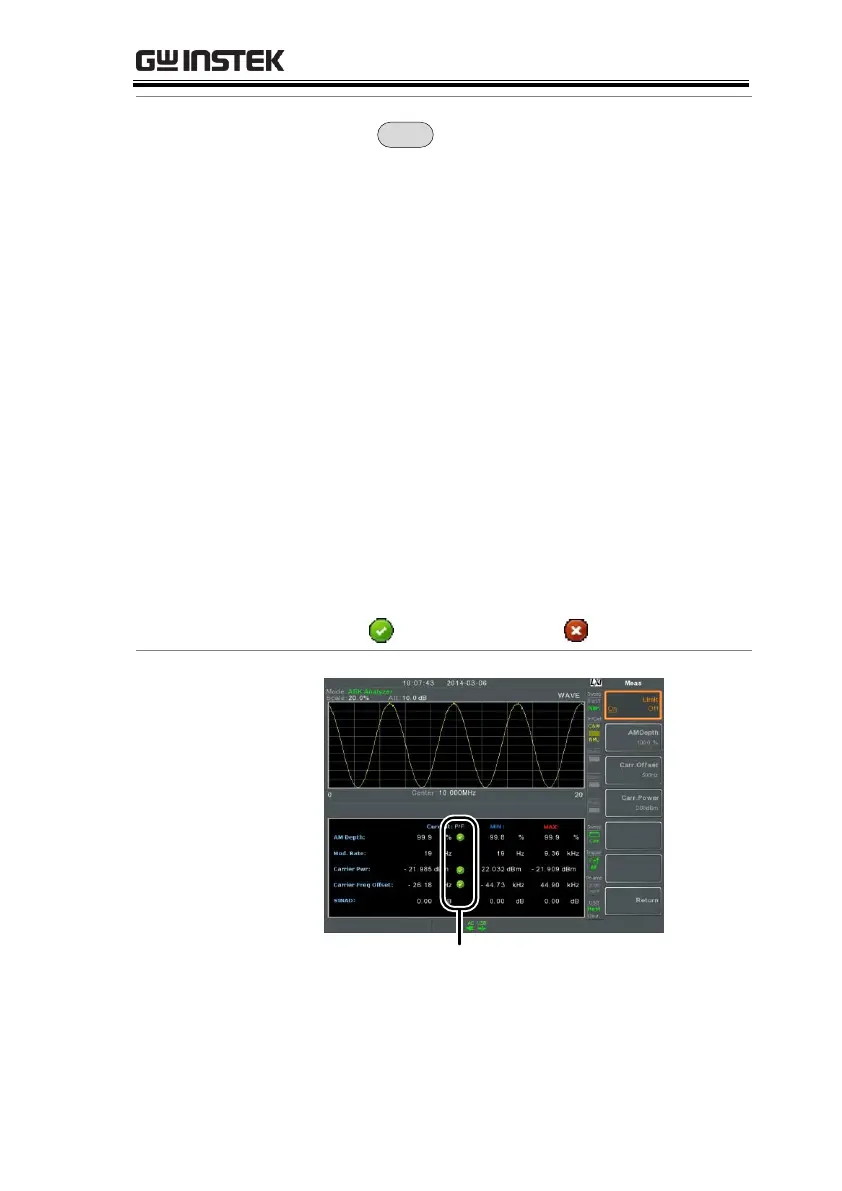

Example
Pass/Fail
judgments
