GW Instek GSP-9300 User Manual

GSP-9300 User Manual
200

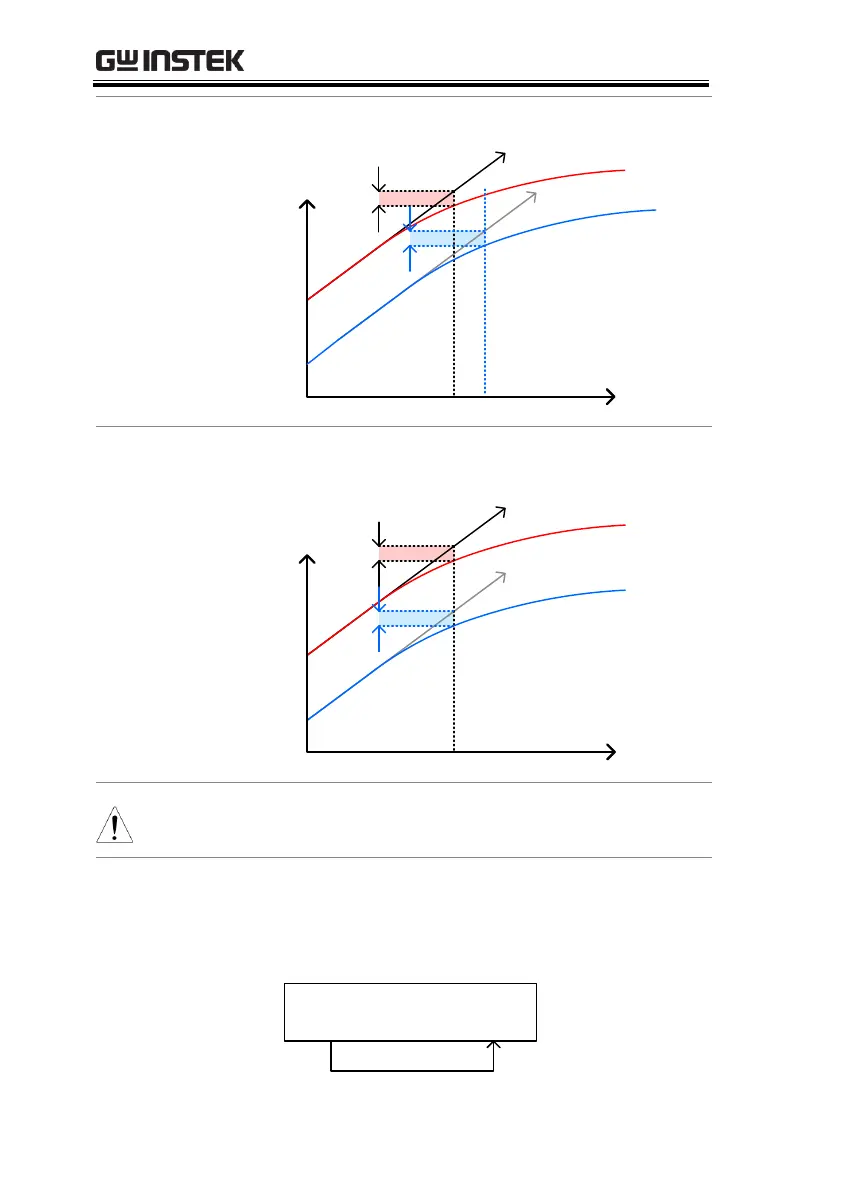

Example 1
Location = Prev
1dB
Output power (dBm)
Input power (dBm)
Normalized
P1dB
Normalized
DUT response
Ideal
DUT response with
line loss before
DUT input
Ideal
1dB
P1dB without
normalization
Example 2
Location = Post
1dB
Output power (dBm)
Input power (dBm)
P1dB
Normalized
DUT response
Ideal
DUT response with line
loss after DUT output
Ideal
1dB
Note
This function can only be used when the P1dB is
turned on.
Operation
1. Connect the cable that is to be connected to the
DUT between the TG and the other cable to the
RF input.
GSP
TG
OUTPUT
RF IN
