Haas VF Series Service Manual

96-8100 1-15-96
100
MECHANICAL SERVICE
HAAS AUTOMATION, INC.
SERVICE MANUAL
VF-SERIES

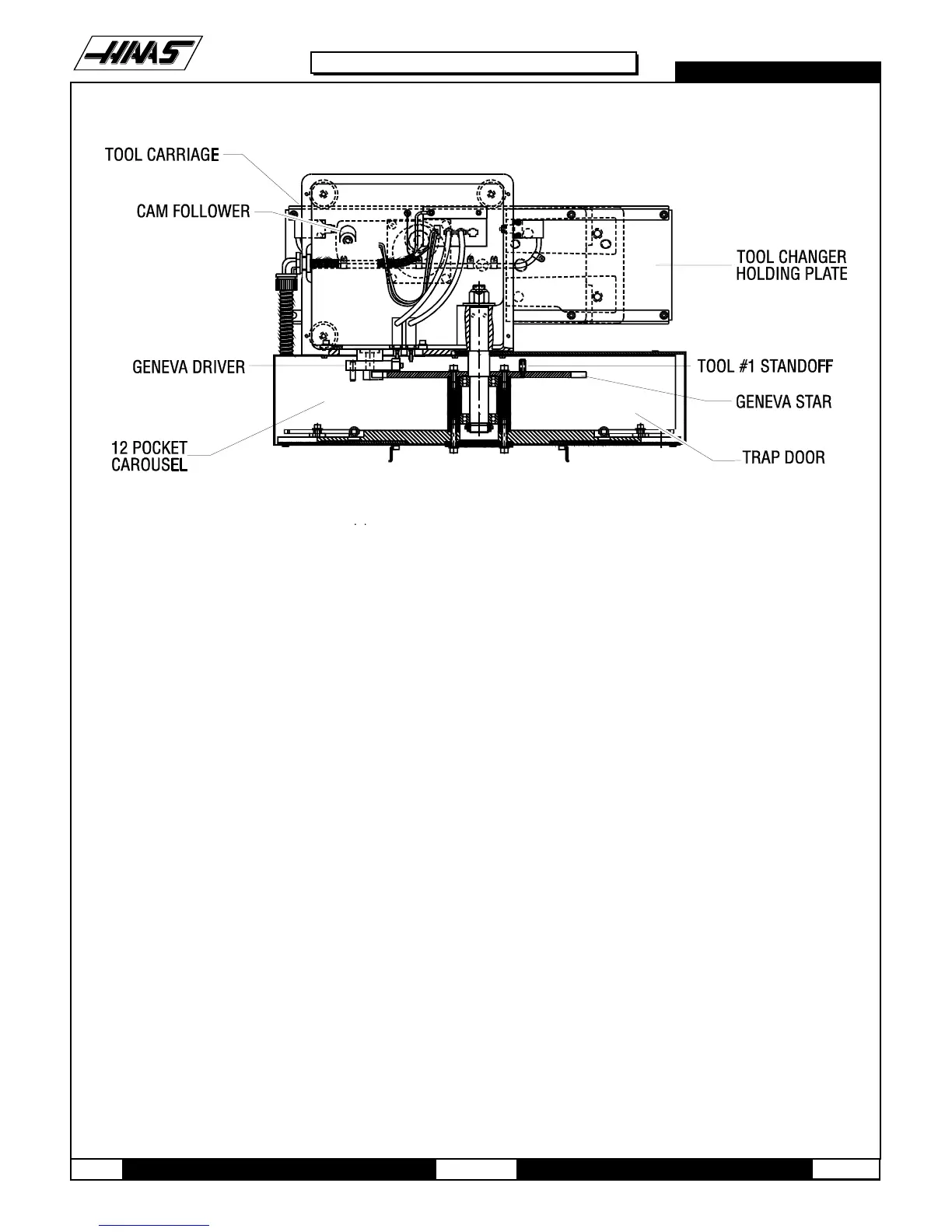

Fig. 12-2 Automatic Tool Changer - Mechanical Assembly (Side View)
12.5 EXTRACTOR FORK REPLACEMENT
NOTE: Extractor forks that do not hold the tool holders firmly, or forks that are bent, must be replaced. Damage to the
ATC will result if not replaced.
1. With no tool holders in the spindle or in the ATC, command "ATC FWD" until the extractor fork needing replacement
is facing the spindle.
2. Command "ATC FWD" again, but press the EMERGENCY STOP after the spindle head lifts up off the carousel
NOTE: At this point, the shuttle should be in and the spindle should be about 4½" above the carousel.
3. Loosen the SHCS that attach the damaged extractor fork to the ATC carousel.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
