Haas VF Series Service Manual

96-8100 1-15-96
126
ELECTRICAL SERVICE
SERVICE MANUAL
VF-SERIES
HA AS AUTOMATION, INC.
3.2 OPERATOR'S LAMP FUSE
1. Turn the main switch (upper right of electrical cabinet) to the off position.
2. Using a large flat tip screwdriver, loosen the three screws on the cabinet door and then open the door enough to safely
work on the electrical panel. Wait until at least the red CHARGE light on the servo drive assembly goes out before
beginning any work inside the electrical cabinet.
3. The Operator's Lamp Fuse is located at the lower left of the Power Supply Board. An orange light will be on to indicate
the blown fuse.

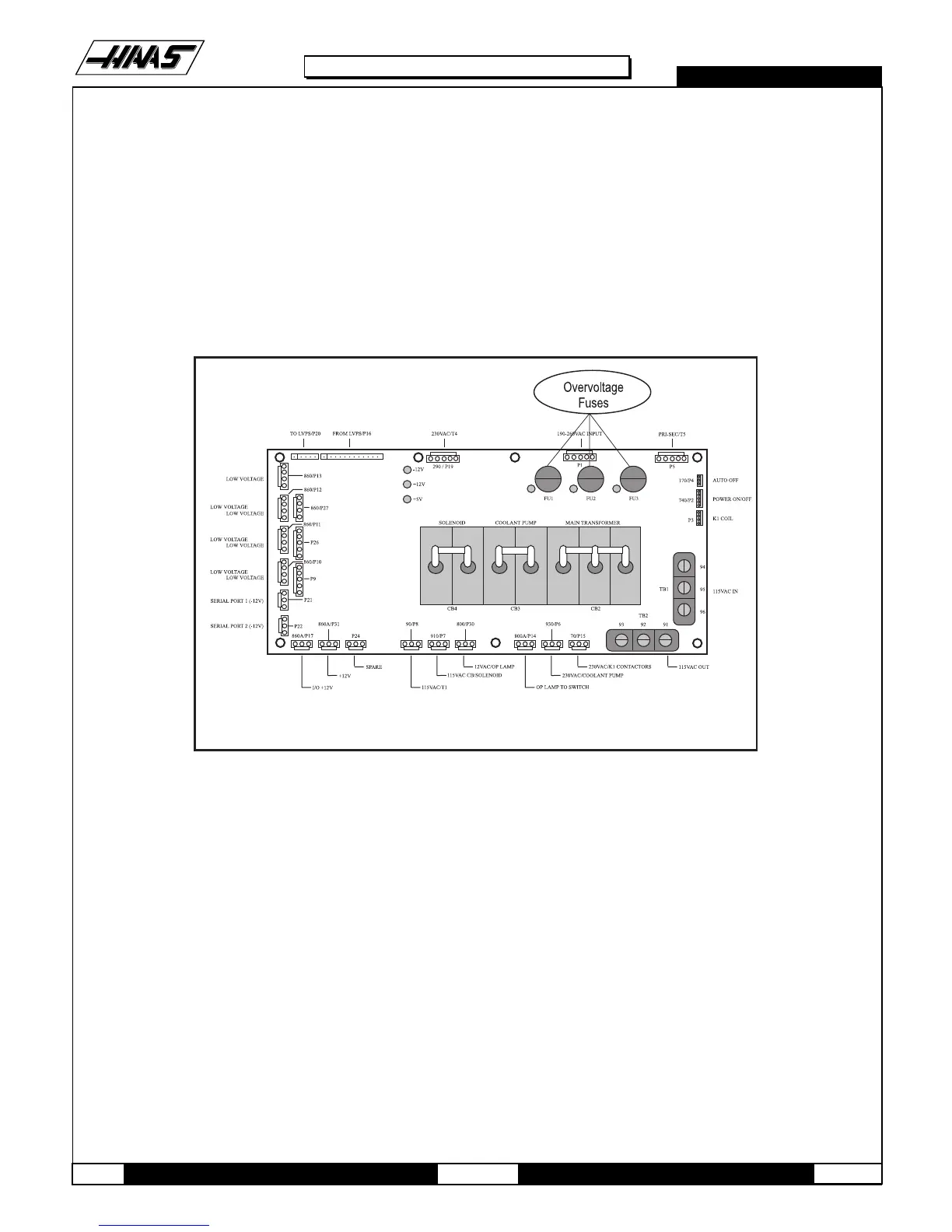

Fig. 3-3 Power supply board; fuse locations.
4. Using a flat tip screwdriver, turn the fuse counterclockwise to remove and replace the blown fuse with ones having
the same type and rating (operator's lamp:½ amp, type AGC, 250V).

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
