Haas VF Series Service Manual

96-8100 1-15-96
110
MECHANICAL SERVICE
HAAS AUTOMATION, INC.
SERVICE MANUAL
VF-SERIES
Ø Check that all roller wheels are seated and roll on their tracks.
Ø If all roller wheels are seated on their tracks, it will be necessary to adjust the door travel by loosening
the upper and lower roller hex fasteners.

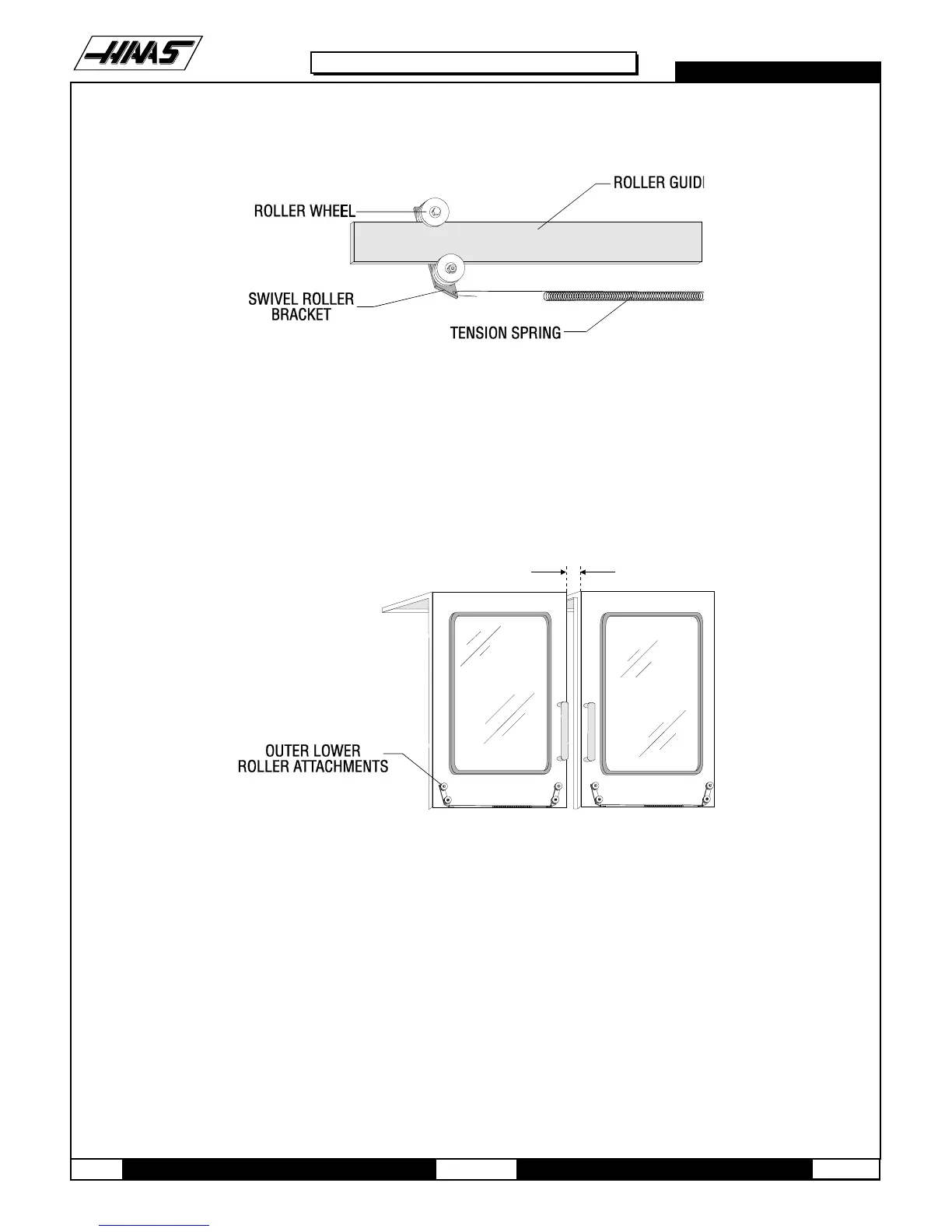

Fig. 14-1 Roller/roller guide assembly
DOOR ADJUSTMENTS -
10. Close both doors and check that the vertical gap between them is uniform. If it is not:
Ø Determine which door must be adjusted.
Ø Loosen the door's outer lower roller attachment and pivot the door on the inner lower roller wheel.
Ø When the door is in the desired position (the vertical gap is uniform), tighten the lower outer roller
fastener.
Fig. 14-2 View of vertical gap between front doors.
11. Check the gap between the door and the front panel flange, and verify it is 5/8" throughout the travel of the door. If
it is not:
Ø Loosen the door's upper roller fasteners and tilt the door forward or back, as necessary, to adjust door
position.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
