INSTALLATION:
8. Replace the air solenoid assembly and attach to the bracket with the SHCS previously removed. Tighten securely.
9. Reconnect all air lines at this time, ensuring that all connections are tight and do not leak.
10.Reconnect the two leads to the low air pressure sensor.
11.Reconnect the wiring to the plugs on the solenoid bracket (See step 6).
12.Reconnect air supply to the machine.
1.2 TOOL RELEASE PISTON ASSEMBLY AIR SOLENOID
1. Turn machine power on and raise spindle head to uppermost position. Turn power off.
2. Remove spindle head covers (Mechanical Service).
3. Remove air supply from machine.
4. Remove the tool release piston assembly (Mechanical Service).
5. Unscrew the air solenoid assembly from the tool release piston assembly, taking care to not disturb the position of the
clamp/unclamp switches.
6. Unscrew the air solenoid from the air solenoid assembly.

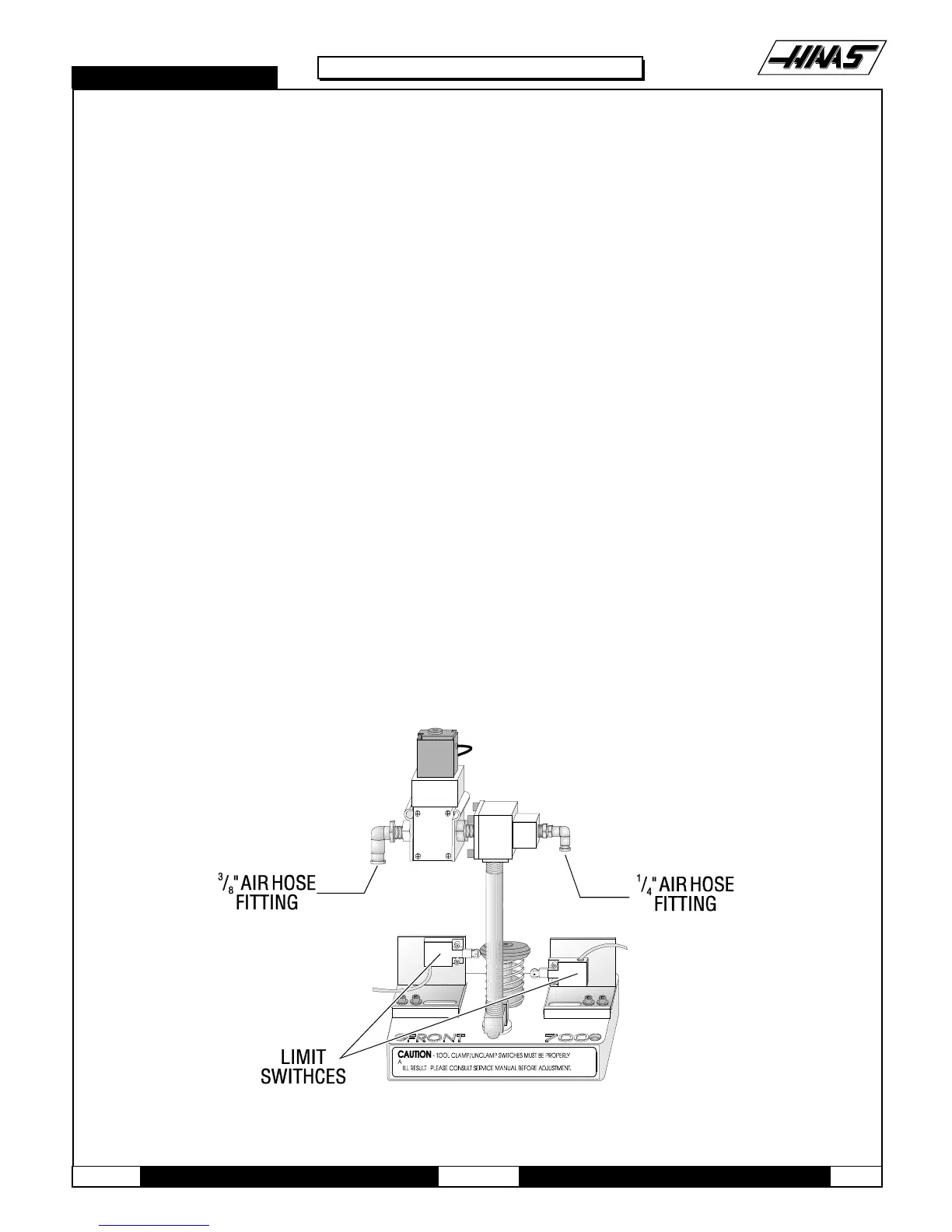

Fig. 1-2 Tool release piston assembly with air solenoid assembly.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
