ELECTRICAL SERVICE
VF-SERIES
SERVICE MANUAL
HA AS AUTOMATION, INC.
7. Reconnect all cables to the KBIF board at their proper locations
TO KEYBOARD
P2
R1
730/
P4
1010/
P3
P5
SPEAKER
METER
START/HOLD METER ADJUST
700/
P1
TO VIDEO &
KEYBOARD PCB

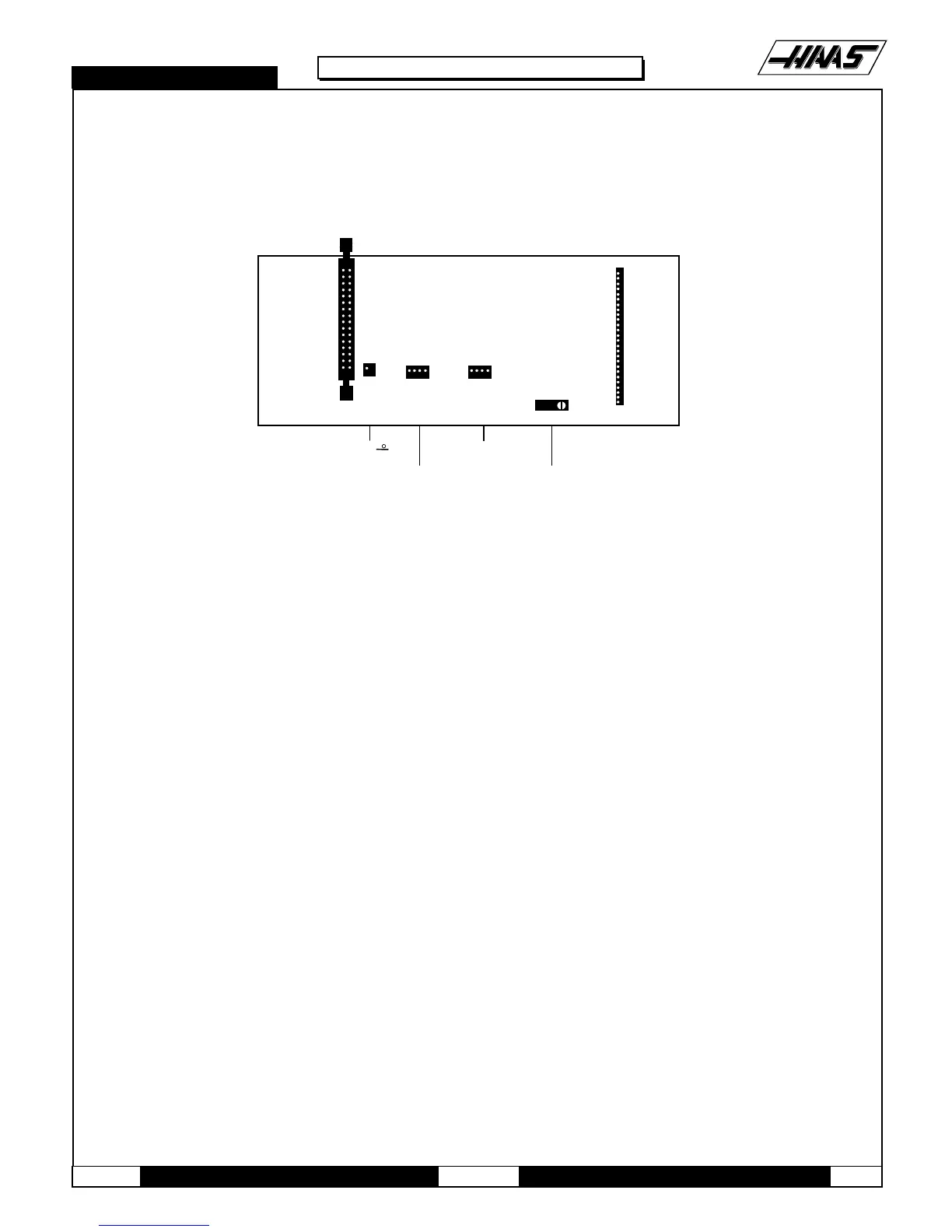

Fig. 5-5 Keyboard Interface
6. SPINDLE ENCODER REPLACEMENT
PLEASE READ THIS SECTION IN ITS ENTIRETY BEFORE ATTEMPTING TO REMOVE OR REPLACE ENCODER.
REMOVAL -
1. Turn machine power on. Raise or lower spindle head to a position that will allow you to easily work on the encoder
(must be above the enclosures). Turn machine off.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
