Haas VF Series Service Manual

1-15-96 96-8100
HAAS AUTOMATION, INC.
53
MECHANICAL SERVICE
SERVICE MANUAL
VF-SERIES
1. Thoroughly clean all mating surfaces of both the cartridge and the head casting, lightly stone if necessary to remove
burrs or high spots.
2. Place spindle on wood block making sure both spindle dogs contact the block. Align the two 10-32 holes located on
the spindle lock so they are approximately 90 degrees from the front of the spindle on the right side.

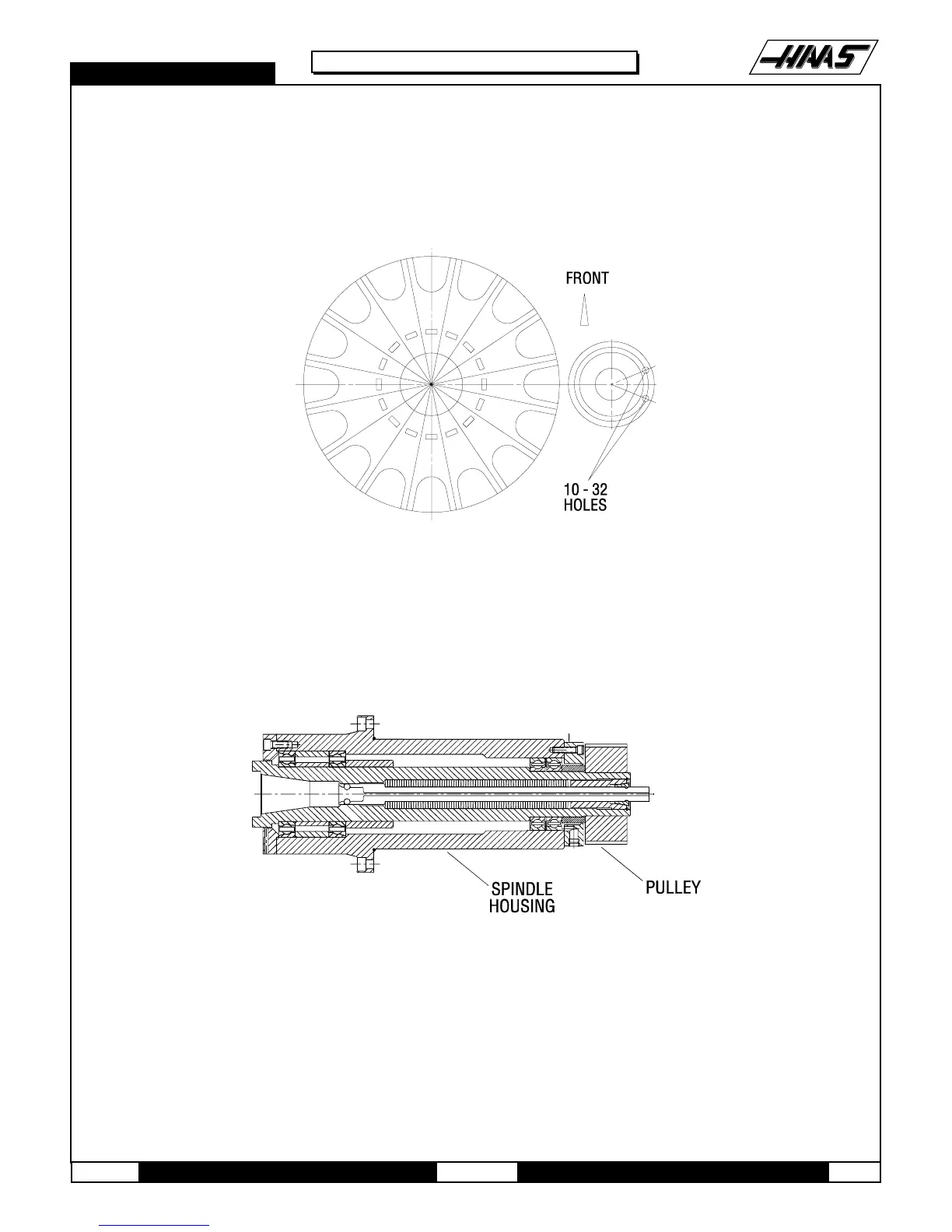

Fig. 4-3 Underside view of spindle cartridge.
3. Slowly jog the Z-axis in the negative (-) direction until threaded portion of spindle is inside of head casting. At this
point, align spindle to spindle bore. While performing this operation, you must make sure the spindle cartridge is
straight to the spindle bore.
Fig. 4-4 Spindle cartridge alignment.
4. If the spindle moves to one side, use a rubber mallet and/or jog in the X or Y directions to straighten it. The spindle
must go in easy. If it does not, check your alignment. Do not force it!
5. Install the six SHCS and tighten down completely.
6. Reattach the brass fitting to the oil injection cover and connect the oil line to the fitting. CAUTION! Do not
overtighten the fittings when replacing on the oil injection cover. Overtightening may result in damage to the spindle
cartridge.

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
