Haas VF Series Service Manual

1-15-96 96-8100
HAAS AUTOMATION, INC.
87
MECHANICAL SERVICE
SERVICE MANUAL
VF-SERIES
5. Loosen the SHCS on the clamp nut at the motor end, then remove the clamp nut.
6. Loosen the six SHCS and remove the bearing sleeve from the motor housing. Push on the mill
table or the opposite end of the lead screw to loosen.
CAUTION: DO NOT PRY THE BEARING SLEEVE AWAY FROM THE HOUSING. DAMAGE TO THE SLEEVE,
BEARING, OR LEAD SCREW WILL RESULT.
7. Disconnect the oil line at the ball nut.
8. Loosen and remove the six SHCS attaching the ball nut to the nut housing.
9. Hand-turn the lead screw toward the rear of the machine until the front end of the lead screw clears the
bearing by approximately six inches (6").

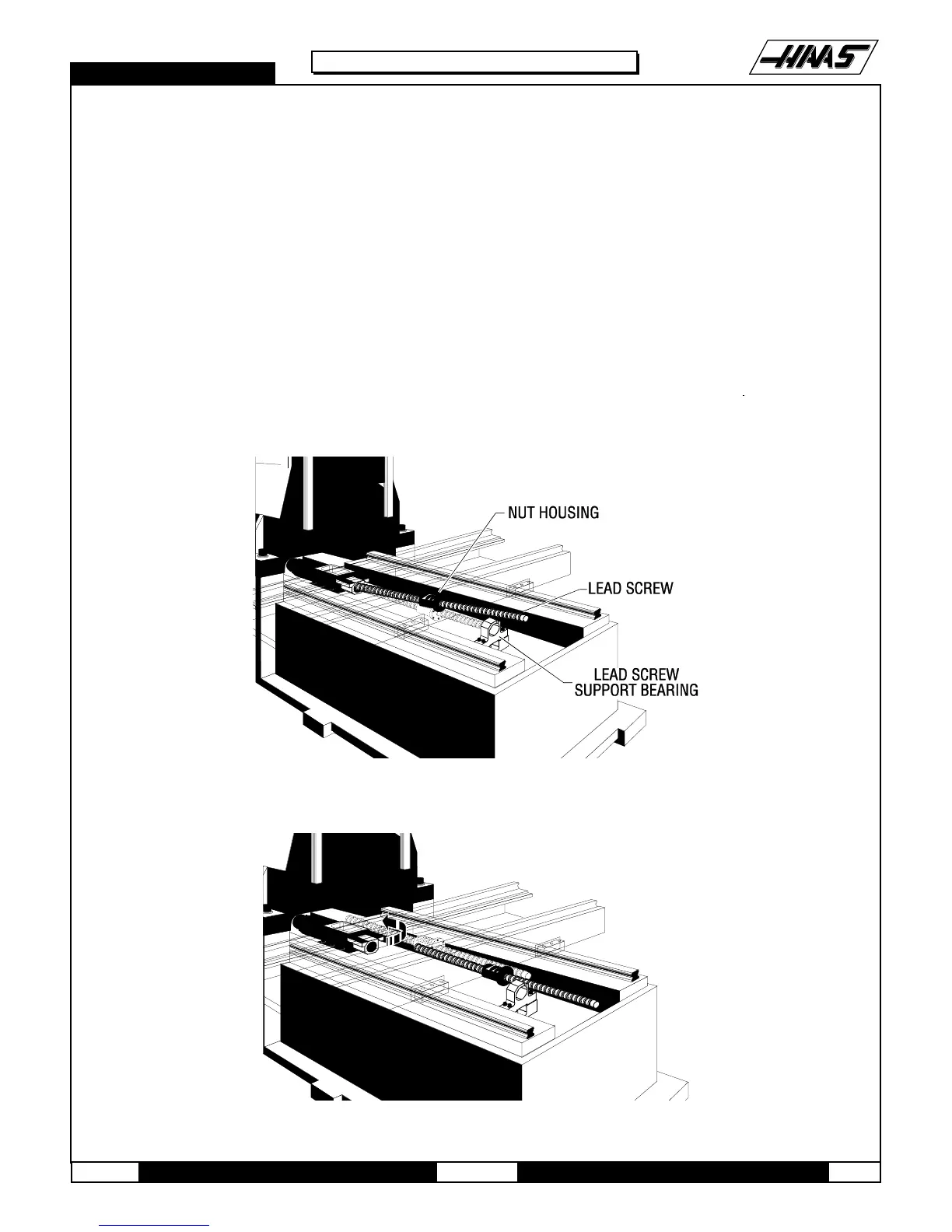

Fig. 10-6 Pull lead screw forward around bearing support,...

Haas VF Series Specifications

General

Machine Type	Vertical Machining Center
Control	Haas CNC Control
Z-Axis Travel	20-30 inches (varies by model)
Y-Axis Travel	16 - 30 inches (varies by model)
Spindle Motor	20-30 hp (depending on model)
Tool Capacity	20-40 tools (varies by model)
